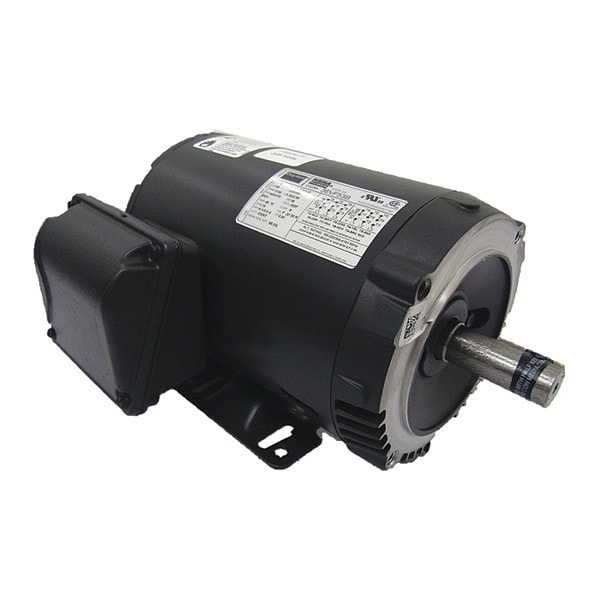

Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 1740 Nameplate RPM

  • Mfr # 36VF53

  • Zoro # G0692161

product price:
$
463.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1740
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
5.3/2.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
36VF53
Zoro #
G0692161
UPC #
190735275856
Country of Origin
Mexico
Item
General Purpose Motor
HP
2
Nameplate RPM
1740
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
5.3/2.6 A
Frame
143/5TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, UL
CC Number
CC029A
Motor Thermal Protection
None
Footnotes
2, 15, 56
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Shaft Key
Capacitor Required
No
Duty Cycle
Continuous
Conduit Box Location
Exterior
Frame Material
Steel
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
5.38/2.69 A
Usable @ 208V
Not Usable at 208V
Application
General Purpose
Inverter Rating
Inverter Rated
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Weight
18 25/32 kg
Number of Speeds
1
Variable Torque Rating
1000:1
Mounting Position
Horizontal
Product Type
General Purpose Motor
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof
Bearing Protection Type
No Protection
NEMA Design Class
B
Bearing Lubrication Type
Permanently Lubricated
Usable @ 200V
Not Usable at 200V
Insulation Class
F

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1740, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.3/2.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL, Includes Conduit Box
