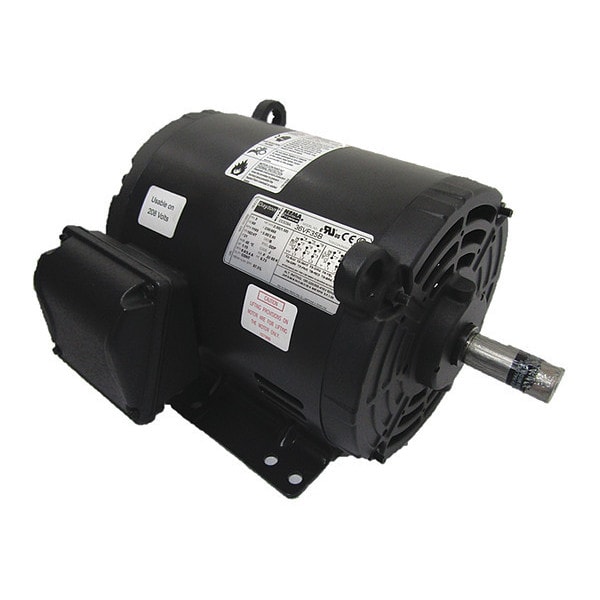

Three-Phase General Purpose Motor, 2 HP, 182/4T Frame, 230/460V AC Voltage, 1165 Nameplate RPM

  • Mfr # 36VF35

  • Zoro # G0692198

product price:  $554.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1165
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.9/2.9 A
Frame
182/4T
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VF35
Zoro #
G0692198
UPC #
190735275672
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 1/16 in
Overall Length
14 3/4 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 1/8 in
Frame Size
182-4T
Body Diameter
8.11 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1165
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.9/2.9 A
Frame
182/4T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
87.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Footnotes
2,15,56
Includes
Shaft Key
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Capacitor Required
No
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Mounting Position
Horizontal
Weight
29 7/8 kg
Frequency
60 Hz
Conduit Box Location
Exterior
Number of Speeds
1
Bearing Lubrication Type
Permanently Lubricated
NEMA Design Class
B
Bearing Type
Ball
Insulation Class
F
Variable Torque Rating
1000:1
Manufacturers Warranty
1 yr
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
5.9/2.95 A
Application
General Purpose
Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Bearing Protection Type
No Protection
Shaft Design
Keyed
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1165, Frame 182/4T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.9/2.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Conduit Box
