Shop DAYTON

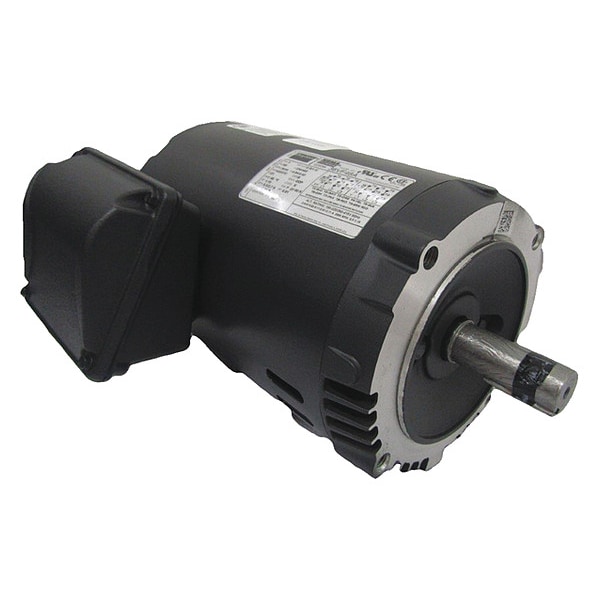

Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 3500 Nameplate RPM

  • Mfr # 36VF48

  • Zoro # G1860455

product price:  $430.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
3500
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
5.0/2.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF48
Zoro #
G1860455
UPC #
190735275801
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 3/8 in
Overall Length
11 9/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
7/8 in
Body Diameter
6.45 in
Bolt Circle Diameter
5 7/8 in
Frame Size
143-5TC
Wire Rope Length
11 9/16 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
3500
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
5.0/2.5 A
Frame
143/5TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Includes
Shaft Key
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
2, 15, 53
Capacitor Required
No
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Weight
16 13/16 kg
Bearing Type
Ball
Usable @ 208V
Not Usable at 208V
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Conduit Box Location
Exterior
Shaft Design
Keyed
Usable @ 200V
Not Usable at 200V
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Number of Speeds
1
NEMA Design Class
B
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Variable Torque Rating
10:1
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr
Efficiency Rating
NEMA Premium Efficiency
Bearing Protection Type
No Protection
Full Load Current @ 60 Hz
5.0 / 2.5 A
Bearing Lubrication Type
Permanently Lubricated
Mounting Position
Horizontal

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 3500, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.0/2.5 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Conduit Box
