  11. Three-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1750 Nameplate RPM

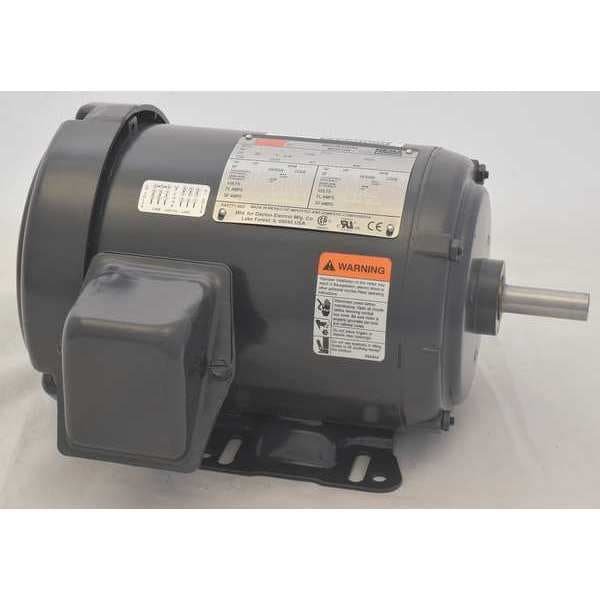

Dayton Three-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1750 Nameplate RPM 48ZJ90 - main

Three-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1750 Nameplate RPM

  • Mfr # 48ZJ90

  • Zoro # G6298385

product price: $425.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1750
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.7/2.8 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48ZJ90
Zoro #
G6298385
UPC #
190735905142
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 11/16 in
Overall Length
12 5/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1750
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.7/2.8 A
Frame
56H
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA (258525), UL (E47479)
CC Number
CC060A
Footnotes
2, 10, 15
Motor Thermal Protection
None
Includes
Shaft Key
Inverter Rated
Yes
Duty Cycle
Continuous

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1750, Frame 56H, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 5.7/2.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA (258525), UL (E47479)
