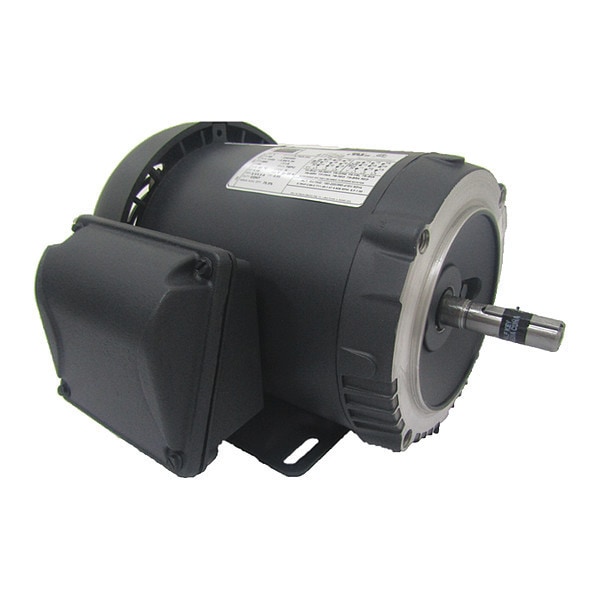

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1135 Nameplate RPM

  • Mfr # 4THZ5
  • Zoro # G2632007
product price:
$
341.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
1135
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
3.0/1.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4THZ5
Zoro #
G2632007
UPC #
190735334362
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 15/16 in
Overall Length
12 13/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Body Diameter
6.45 in
Frame Size
56C
Wire Rope Length
12 13/16 in
Bolt Circle Diameter
5 7/8 in
Length
12 13/16 in

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
1135
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
3.0/1.5 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
75.5 %
Standards
CE, CSA, UL
Inverter Rated
Yes
Motor Thermal Protection
None
Footnotes
2,10
NEMA Design
B
Duty Cycle
Continuous
Bearing Protection Type
Shaft Slingers
Includes
Shaft Key
Efficiency Rating
NEMA Standard Efficiency
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr
Variable Torque Rating
10:1
Full Load Current @ 60 Hz
2.68/1.34 A
Application
General Purpose
Usable @ 200V
Not Usable at 200V
Motor Enclosure Type
Totally Enclosed Fan Cooled
Weight
14 15/32 kg
Conduit Box Location
Exterior
Number of Speeds
1
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
A
Inverter Rating
Inverter Rated
Bearing Type
Ball
Frequency
60 Hz
Insulation Class
F
Bearing Lubrication Type
Permanently Lubricated
Usable @ 208V
Not Usable at 208V

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 1135, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.0/1.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
