Shop DAYTON

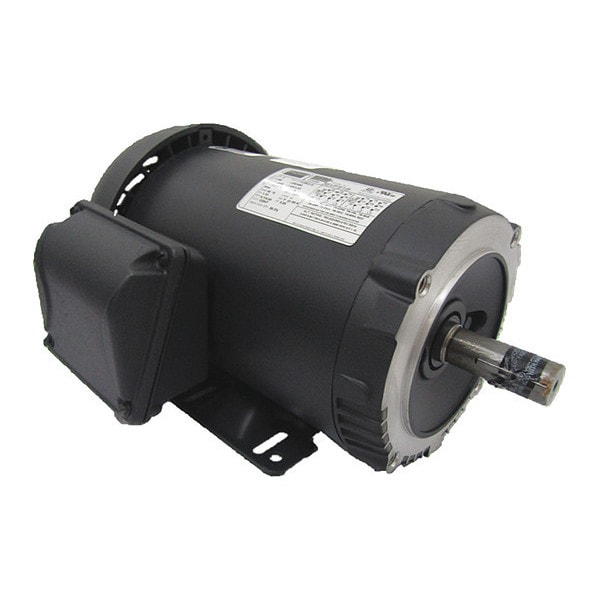

Three-Phase General Purpose Motor, 3 HP, 143/5TC Frame, 230/460V AC Voltage, 3490 Nameplate RPM

  • Mfr # 36VF91

  • Zoro # G0691927

product price:  $516.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3490
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
7.1/3.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF91
Zoro #
G0691927
UPC #
190735276235
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 15/16 in
Overall Length
15 3/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
7/8 in
Frame Size
143-5TC
Body Diameter
6.45 in
Wire Rope Length
15 3/16 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3490
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
7.1/3.5 A
Frame
143/5TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, UL
CC Number
CC029A
Footnotes
5, 15, 54
Includes
Shaft Key
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Thermal Protection
None
Duty Cycle
Continuous
Capacitor Required
No
Mounting Position
Horizontal
Application
General Purpose
Frequency
60 Hz
Frame Material
Steel
Shaft Design
Keyed
Number of Speeds
1
Full Load Current @ 60 Hz
7.05/3.53 A
Usable @ 208V
Not Usable at 208V
Efficiency Rating
NEMA Premium Efficiency
Inverter Rating
Inverter Rated
NEMA Design Class
B
Constant Torque Rating
4:1
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Weight
21 1/32 kg
Bearing Type
Ball
Insulation Class
F
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.15
Bearing Lubrication Type
Permanently Lubricated
Variable Torque Rating
10:1
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Bearing Protection Type
Shaft Slingers
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3490, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.1/3.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CSA, UL
