Shop DAYTON

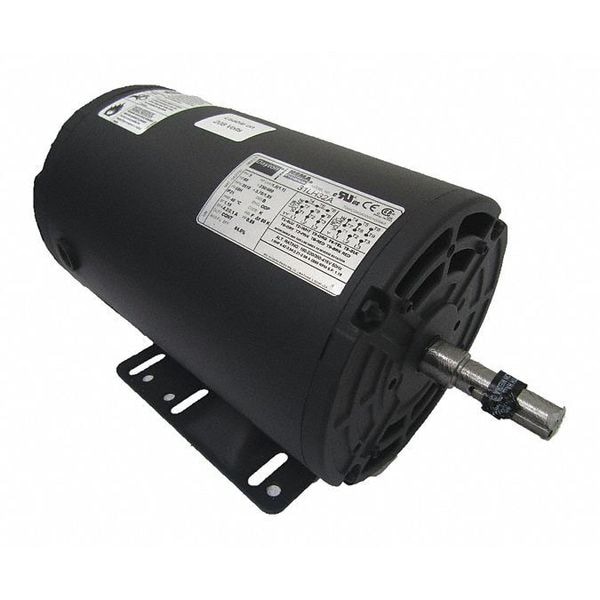

Three-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 230/460V AC Voltage, 3510 Nameplate RPM

  • Mfr # 31LH32

  • Zoro # G9096062

product price:  $318.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
3510
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.7/1.85 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
31LH32
Zoro #
G9096062
UPC #
190735254998
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 3/4 in
Overall Length
11 7/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Body Diameter
6.45 in
Shaft Diameter
5/8 in
Frame Size
56H

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
3510
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.7/1.85 A
Frame
56H
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
84 %
Standards
CE, CSA, UL
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Footnotes
15,16,20
Includes
Shaft Key
Inverter Rated
Yes
Capacitor Required
No
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof
Conduit Box Location
Interior
Bearing Protection Type
No Protection
Application
General Purpose
Usable @ 208V
Not Usable at 208V
NEMA Design Class
B
Variable Torque Rating
1000:1
Full Load Current @ 60 Hz
3.7/1.85 A
Efficiency Rating
NEMA Premium Efficiency
Weight
13 1/2 kg
Nameplate Service Factor @ 60 Hz
1.15
Frame Material
Steel
Frequency
60 Hz
Bearing Type
Ball
Product Type
General Purpose Motor
Bearing Lubrication Type
Permanently Lubricated
Insulation Class
F
Inverter Rating
Inverter Rated

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3510, Frame 56H, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.7/1.85 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Shaft Key
