Shop DAYTON

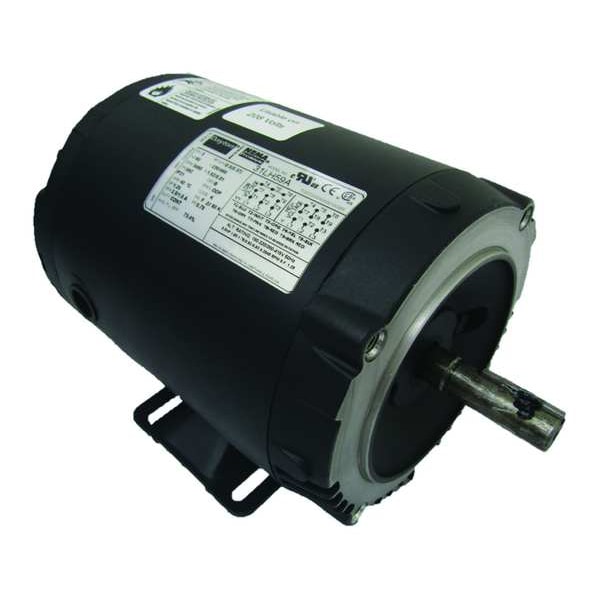

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3490 Nameplate RPM

  • Mfr # 31LH59

  • Zoro # G9096333

product price:  $272.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
3490
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.6/0.81 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
31LH59
Zoro #
G9096333
UPC #
190735255261
Country of Origin
Mexico

Dimensions

Length Less Shaft
6 15/16 in
Overall Length
10 5/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
5/8 in
Frame Size
56C
Body Diameter
6.45 in

Details

Item
General Purpose Motor
HP
1/2
Nameplate RPM
3490
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.6/0.81 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
73.4 %
Standards
CE, CSA, UL
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Inverter Rated
Yes
Includes
Shaft Key
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
15,16
Capacitor Required
No
Duty Cycle
Continuous
Number of Speeds
1
Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Full Load Current @ 60 Hz
1.6 / 0.80 A
Inverter Rating
Inverter Rated
Bearing Lubrication Type
Permanently Lubricated
Weight
7 27/32 kg
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Frequency
60 Hz
Bearing Protection Type
No Protection
Insulation Class
F
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
40 Degrees C
Conduit Box Location
Interior
Variable Torque Rating
10:1
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Usable @ 200V
Not Usable at 200V
NEMA Design Class
B
Application
General Purpose
Efficiency Rating
NEMA Premium Efficiency

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/2 HP, Nameplate RPM 3490, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.6/0.81 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 73.4 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
