  11. Three-Phase General Purpose Motor, 3 HP, 213/5T Frame, 230/460V AC Voltage, 1175 Nameplate RPM

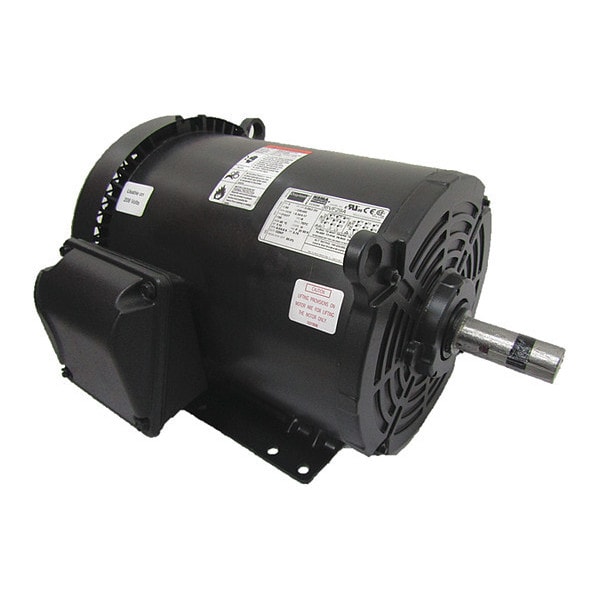

Dayton Three-Phase General Purpose Motor, 3 HP, 213/5T Frame, 230/460V AC Voltage, 1175 Nameplate RPM 36VF29 - main

Three-Phase General Purpose Motor, 3 HP, 213/5T Frame, 230/460V AC Voltage, 1175 Nameplate RPM

  • Mfr # 36VF29

  • Zoro # G1860507

product price: $915.99
/ea
Item requires special delivery charges. A $75.00 per item surcharge will be applied.

Key Features

Nameplate RPM
1175
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.3/4.1 A
Frame
213/5T
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36VF29
Zoro #
G1860507
UPC #
190735275610
Country of Origin
Mexico

Dimensions

Length Less Shaft
15 15/16 in
Overall Length
19 5/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1175
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.3/4.1 A
Frame
213/5T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Green Certification or Other Recognition
NEMA Premium Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Footnotes
2,15,55
Includes
Conduit Box
Inverter Rated
Yes
Motor Thermal Protection
None
Duty Cycle
Continuous
Capacitor Required
No

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1175, Frame 213/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.3/4.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
