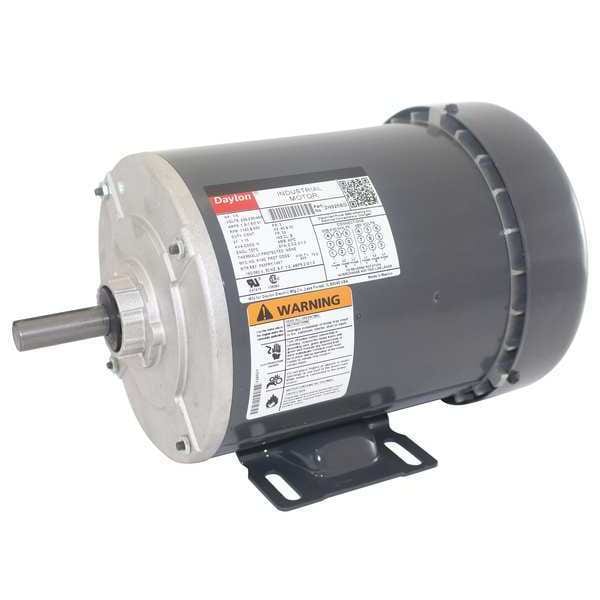

Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 208-230/460V AC Voltage, 1,140 Nameplate RPM
Mfr # 2N925
Zoro # G0412702
product price:Â $452.99
/ea
Free Shipping & Returns
Key Features
HP
1/3
Nameplate RPM
1,140
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.4-1.4/0.70 A
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
2N925
Zoro #
G0412702
UPC #
190735228203
Country of Origin
Mexico
Dimensions
Length Less Shaft
10 1/2 in
Overall Length
12 13/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Frame Size
56
Body Diameter
6.44 in
Shaft Diameter
5/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, Nameplate RPM 1,140, Frame 56, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.4-1.4/0.70 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1,101-1,200
