Shop DAYTON

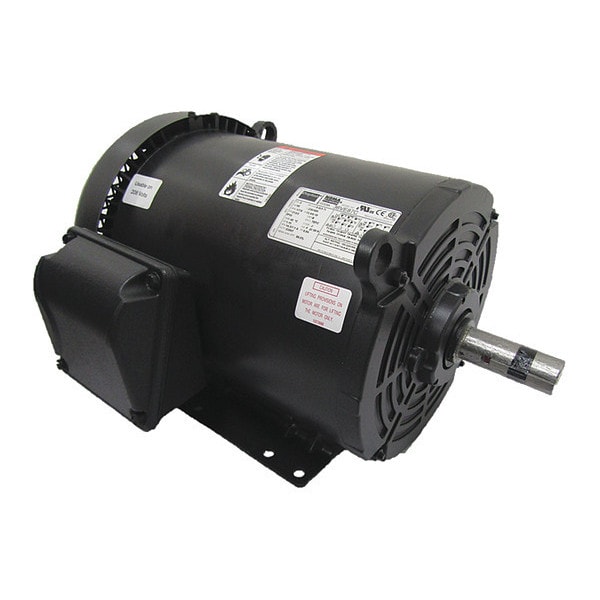

Three-Phase General Purpose Motor, 5 HP, 213/5 Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 36VE87

  • Zoro # G1578757

product price:  $987.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

HP
5
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.4/6.2 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VE87
Zoro #
G1578757
UPC #
190735275214
Country of Origin
Mexico

Dimensions

Length Less Shaft
15 1/2 in
Overall Length
18 1/2 in
Shaft Dia.
1 1/8 in
Shaft Length
3 in
Manufacturers Warranty Length
1 yr
Body Diameter
9.78 in
Shaft Diameter
1 1/8 in
Frame Size
213-5

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.4/6.2 A
Frame
213/5
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Shaft Key
Footnotes
2,15,53
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Duty Cycle
Continuous
Capacitor Required
No
NEMA Design Class
B
Mounting Position
Horizontal
Constant Torque Rating
4:1
Product Type
General Purpose Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
12.7/6.33 A
Bearing Type
Ball
Usable @ 200V
Not Usable at 200V
Application
General Purpose
Conduit Box Location
Exterior
Insulation Class
F
Weight
52 7/16 kg
Bearing Lubrication Type
Permanently Lubricated
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Frequency
60 Hz
Efficiency Rating
NEMA Premium Efficiency
Number of Speeds
1
Variable Torque Rating
10:1
Bearing Protection Type
Shaft Slingers
Nameplate Service Factor @ 60 Hz
1.15
Usable @ 208V
Not Usable at 208V
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1,770, Frame 213/5, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.4/6.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, UL
