Shop DAYTON

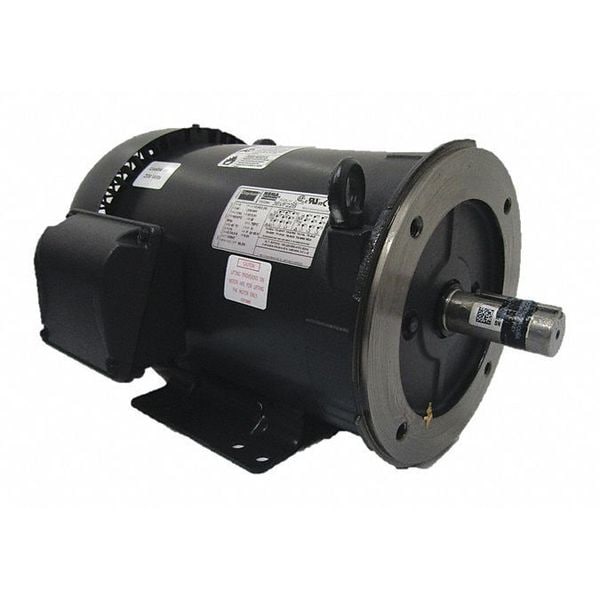

Three-Phase General Purpose Motor, 3 HP, 182/4TC Frame, 230/460V AC Voltage, 1765 Nameplate RPM

  • Mfr # 36VF22

  • Zoro # G0692231

product price:
$
682.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

HP
3
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
7.6/3.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
36VF22
Zoro #
G0692231
UPC #
190735275542
Country of Origin
Mexico
Item
General Purpose Motor
HP
3
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
7.6/3.8 A
Frame
182/4TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Footnotes
2, 15, 55
Motor Thermal Protection
None
Includes
Shaft Key
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Capacitor Required
No
Duty Cycle
Continuous
Weight
39 7/8 kg
Bearing Type
Ball
Bearing Protection Type
Shaft Slingers
Constant Torque Rating
4:1
Number of Speeds
1
Usable @ 200V
Not Usable at 200V
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr
Inverter Rating
Inverter Rated
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
8.43/7.62 A
Frequency
60 Hz
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Shaft Design
Keyed
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
Ambient Temperature - Maximum
40 Degrees C
Bearing Lubrication Type
Permanently Lubricated
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
Variable Torque Rating
10:1
Mounting Position
Horizontal
Frame Material
Steel

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1765, Frame 182/4TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.6/3.8 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
