  9. Turbine Pump, 1/3 HP, 1 Ph, 7.5/3.8 Amp

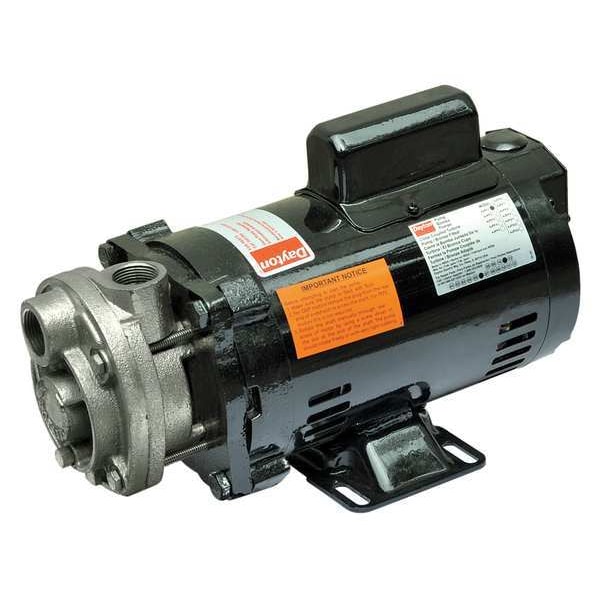

Dayton Turbine Pump, 1/3 HP, 1 Ph, 7.5/3.8 Amp 4JPF1 - main

Turbine Pump, 1/3 HP, 1 Ph, 7.5/3.8 Amp

  • Mfr # 4JPF1

  • Zoro # G0743531

product price: $912.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Voltage
115/230
Wetted Materials
Bronze, Carbon, Cast Iron,Buna-N, Ceramic and 316 Stainless Steel
Seal Material
316 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
140 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4JPF1
Zoro #
G0743531
UPC #
190735327050
Country of Origin
India

Dimensions

Height
6 3/8 in
Width
6 1/2 in
Overall Height
6.38 in
Overall Width
6.5 in
Compatible Discharge Pipe Size
3/4 in
Compatible Intake Pipe Size
3/4 in

Details

HP
1/3 hp
Voltage
115/230
Wetted Materials
Bronze, Carbon, Cast Iron,Buna-N, Ceramic and 316 Stainless Steel
Seal Material
316 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
140 psi
GPM @ 75 PSI
1.3
GPM @ 50 PSI
1.5
Impeller Type
Open
Includes
OIPM
Duty
Continuous
Housing Material
Cast Iron with nickel plating
Frame
56J
Inlet
3/4 in
Max. Case Pressure
200 psi
Agency Compliance
Motor is UL Recognized
Phase
Single
Max. Specific Gravity
1
GPM @ 90 PSI
0.9
Motor Type
Capacitor-Start/Run
Motor RPM
3,450 RPM
GPM @ 60 PSI
1.6
Inlet Pressure
150 psi
GPM @ 10 PSI
53
Item
Turbine Pump
Outlet
3/4 in
Impeller Material
Bronze
Amps
7.5/3.8
GPM @ 100 PSI
0.7
Hz
60
Bearing Type
Ball
Best Efficiency GPM @ Head
1.0 @ 85 ft
GPM @ 40 PSI
2
GPM @ 30 PSI
2.3
GPM @ 80 PSI
1.1
GPM of Water @ 120 PSI
0.4
GPM @ 20 PSI
2.6
Inlet (In.)
3/4
Motor Enclosure
Open Dripproof (ODP)
Features
Designed to Handle Liquids with Entrained Air
Standards
UL Listed
Flow Rate @ 50 psi
1.5 gpm
Wetted Material
316 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic
Compatible with Media Type
Water
Specific Gravity (Maximum)
1
Case Pressure (Maximum)
200 psi
Flow Rate @ 30 psi
2.3 gpm
Discharge Type
NPT
Minimum Media Temperature
-20 Degrees F
Flow Rate @ 90 psi
0.9 gpm
Flow Rate @ 60 psi
1.6 gpm
Impeller Design
Open
Nameplate Voltage
115/230V AC
Maximum RPM
3,450 RPM
Flow Rate @ 40 psi
2 gpm
Motor Frame Designation
56J
Flow Rate @ 20 psi
2.6 gpm
NPSHr
150 psi
Best Efficiency Head
85 ft
Frequency
60 Hz
Duty Cycle
Continuous
Flow Rate @ 140 psi
0 gpm
Flow Rate @ 80 psi
1.1 gpm
Flow Rate @ 10 psi
2.5 gpm
Minimum Flow Rate
0.4 gpm
Intake Type
NPT
Priming
Self-Priming
Horsepower
1/3 hp
Seal Type
Mechanical Seal
Pump Housing Material
Cast Iron
Maximum Flow Rate
2.5 gpm
Operation
Manual
Flow Rate @ 120 psi
0.4 gpm
Shut Off Pressure (Maximum)
140 psi
Flow Rate @ 100 psi
0.7 gpm

Description

Turbine Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 1/3 hp, Nameplate Voltage 115/230V AC, Shut Off Pressure (Maximum) 140 psi, Maximum Flow Rate 2.5 gpm, Flow Rate @ 10 psi 2.5 gpm, Flow Rate @ 20 psi 2.6 gpm, Flow Rate @ 30 psi 2.3 gpm, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Type Capacitor-Start/Run, Best Efficiency Head 85 ft, Case Pressure (Maximum) 200 psi
