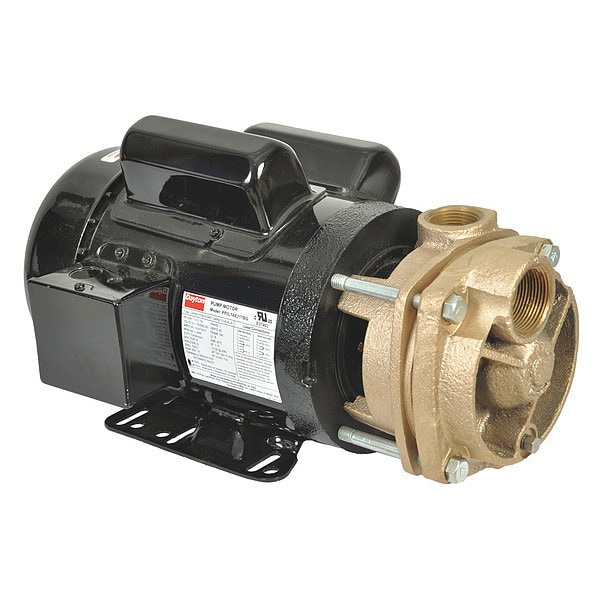

Dayton Turbine Pump, 2 HP, 115 to 230V, 3450 rpm 53EC01 - main

Turbine Pump, 2 HP, 115 to 230V, 3450 rpm

  • Mfr # 53EC01

  • Zoro # G2042752

product price:  $1,044.99
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Voltage
115/208/230
Wetted Materials
Bronze, Buna-N, Carbon, Ceramic and 304 Stainless Steel
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
100 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
53EC01
Zoro #
G2042752
UPC #
-
Country of Origin
India

Dimensions

Max. Dia. Solids
0.25 Microns
Manufacturers Warranty Length
1 yr
Height
6 5/16 in
Width
9 3/4 in
Overall Height
6.31 in
Solid Diameter (Maximum)
0.25 micron
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
1 in
Compatible Intake Pipe Size
1 1/4 in
Overall Width
9.75 in

Details

HP
2 hp
Voltage
115/208/230
Wetted Materials
Bronze, Buna-N, Carbon, Ceramic and 304 Stainless Steel
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
100 psi
GPM @ 90 PSI
10.0
Duty
Continuous
Frame
56J
Thermal Protection
yes
Hz
60
Overload Protection
yes
Bearing Type
Ball
Port Rotation
90 Degrees Increments
Inlet (In.)
1-1/4 FNPT
Amps
16.6/8.3
Best Efficiency GPM @ PSI
16.0 @ 75
GPM @ 60 PSI
17.2
Motor Type
Capacitor-Start/Run
GPM @ 40 PSI
19.4
Inlet Pressure
150 psi
GPM @ 50 PSI
18.3
Impeller Material
Bronze
Best Efficiency GPM @ Head
16.0 @ 75 psi
Max. Specific Gravity
1
Housing Material
Bronze
Outlet
1 in FNPT
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Item
Turbine Pump
GPM @ 20 PSI
21.5
GPM @ 10 PSI
22.5
Motor RPM
3,450 RPM
GPM @ 80 PSI
14.9
Pump RPM
3,450
Max. Liquid Temp.
230 Degrees F
Max. Case Pressure
200 psi
GPM @ 30 PSI
20.5
Phase
Single
Installation Position
Horizontal
Agency Compliance
UL Listed
Inlet
1-1/4 in FNPT
Impeller Type
Regenerative Turbine
GPM @ 75 PSI
15.5
Motor Ambient Temp. Rating
40 Degrees C
Motor Ambient Temperature (Maximum)
104 Degrees F
Motor Frame Designation
56J
Flow Rate @ 80 psi
14.9 gpm
Discharge Type
NPT
Horsepower
2 hp
Maximum Media Temperature
230 Degrees F
Nameplate Voltage
115/208-230V AC
Duty Cycle
Continuous
Specific Gravity (Maximum)
1
Mounting Orientation
Horizontal
Flow Rate @ 50 psi
18.3 gpm
Flow Rate @ 40 psi
19.4 gpm
Thermal Overload Protection
Yes
Discharge Rotation
90 Degrees Increments
Flow Rate @ 60 psi
17.2 gpm
Flow Rate @ 10 psi
22.5 gpm
Flow Rate @ 20 psi
21.5 gpm
Impeller Design
Regenerative Turbine
Flow Rate @ 30 psi
20.5 gpm
Frequency
60 Hz
Standards
UL Listed
NPSHr
150 psi
Maximum Flow Rate
22.5 gpm
Pump Housing Material
Bronze
Maximum RPM
3,450 RPM
Minimum Flow Rate
10 gpm
Intake Type
NPT
Case Pressure (Maximum)
200 psi
Features
Boiler Feed, Condensation Return, Liquid Transfer, Pressure Service, Reverse Osmosis Filtration, Seals and an Easily Accessible Drain Plug, Spray Equipment
Flow Rate @ 90 psi
10 gpm
Best Efficiency Head
75 ft
Compatible with Media Type
Non-Flammable Liquids, Water
Shut Off Pressure (Maximum)
100 psi
Wetted Material
304 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
Flow Rate @ 100 psi
0 gpm
Seal Type
Mechanical

Description

Turbine Pump, Phase Single, Pump Housing Material Bronze, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 2 hp, Nameplate Voltage 115/208-230V AC, Shut Off Pressure (Maximum) 100 psi, Maximum Flow Rate 22.5 gpm, Flow Rate @ 10 psi 22.5 gpm, Flow Rate @ 20 psi 21.5 gpm, Flow Rate @ 30 psi 20.5 gpm, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Type Capacitor-Start/Run, Best Efficiency Head 75 ft, Case Pressure (Maximum) 200 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
