Dayton

Universal AC/DC Mtr, 1/15hp, 5000 RPM, 115V

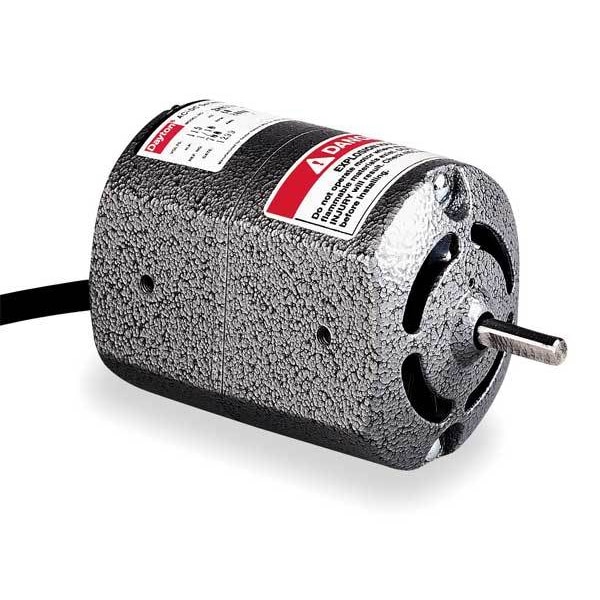

Dayton Universal AC/DC Mtr, 1/15hp, 5000 RPM, 115V 2M034
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$76.58
  • HP: 1/15
  • Nameplate RPM: 5,000
  • Shaft Dia.: 1/4 in
See full product details
This item ships free.
Total: $76.58

Dayton #2M034 Specifications

  • HP: 1/15
  • Nameplate RPM: 5,000
  • Shaft Dia.: 1/4 in
  • O.C. Mounting: 2 3/16 in
  • Mounting Holes: (2) #10-32
  • Item: Universal AC/DC Motor
  • Voltage: 115V AC
  • Frame: Non-Standard
  • Motor Design: Universal AC/DC
  • Motor Enclosure Design: Open
  • Footnotes: 32
  • Motor Application: Universal AC/DC Motor
  • Application: Used in Appliances, Power Tools, Outdoor Equipment, Food Processing Equipment, Gearmotors, Blowers, Pumps and Other Applications Where High Horsepower Output and Small Size are Required
  • Full Load Amps: 1.2
  • Motor Service Factor: 1
  • Motor Shaft Rotation: CWSE
  • Ins. Class: A
  • Hz: 60
  • Shaft Length: 3/4 in
  • Standards: UL Recognized
  • Motor Thermal Protection: None
  • Motor Bearings: Sleeve
  • Phase: Single
  • Body Dia.: 2 3/4 in
  • Average Brush Life: 300 hr
  • Overall Length: 5 3/16 in
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Motor Mounting Position: All Angle
  • Length Less Shaft: 4 7/16 in
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Mounting Type: Hole
  • RPM Range: Over 3,600
  • Motor Sub Application: Belt Drive Fan/Blower
  • Replacement Brushes: 1R389
  • Motor Shaft Design: Flat
  • No. of Speeds: 1
  • Usable @ 208V: No
  • Usable @ 200V: No
  • Finish: Unfinished
  • Weight: 2.2 lb
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Universal AC/DC Motor, Single Phase, Motor Design Universal AC/DC, 1/15 HP, Nameplate RPM 5,000, No. of Speeds 1, 115V AC Voltage, Full Load Amps 1.2, Non-Standard Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW, Motor Enclosure Design Open, Motor Mounting Type Hole, Motor Mounting Position All Angle, Finish Unfinished, Shaft Dia. 1/4 in, Shaft Length 3/4 in
