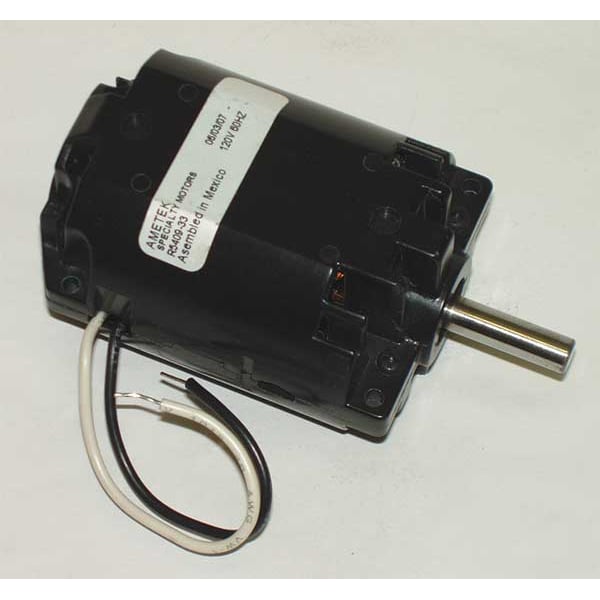

Universal AC/DC Mtr, 1/4hp, 19,500rpm, 120V

  • Mfr # 5409-33-2

  • Zoro # G1611267

product price:
$
49.89
/ea

Key Features

HP
1/4
Nameplate RPM
19,500 RPM
Shaft Dia.
5/16 in
O.C. Mounting
2 1/4 in
Mounting Holes
(2) #8-32
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5409-33-2
Zoro #
G1611267
UPC #
-
Country of Origin
China
HP
1/4
Nameplate RPM
19,500 RPM
O.C. Mounting
2 1/4 in
Mounting Holes
(2) #8-32
Item
Universal AC/DC Motor
Voltage
115V AC
Frame
Non-Standard
Motor Design
Universal AC/DC
Motor Enclosure Design
Open
Motor Thermal Protection
One-Shot
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Input Watts
480 W
Housing Material
Thermoset Plastic
Standards
CSA Certified (LR31393), UL Listed (E47185)
Motor Mounting Type
Hole
Motor Bearings
Ball
Average Brush Life
200 hr
Motor Service Factor
1
Ins. Class
A
Finish
Enamel
Application
General Purpose
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Mounting Position
All Angle
RPM Range
Over 3,600
Motor Application
Universal AC/DC Motor
Phase
Single
Motor Shaft Rotation
CCWSE
Motor Shaft Design
Round
Weight
1 4/5 lb
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Frequency
60 Hz
Product Type
Universal AC/DC Motor
Insulation Class
A
Bearing Type
Ball
Mounting Position
All Angle
Ambient Temperature - Maximum
40 Degrees C
Frame Finish
Enamel-Coated
Motor Enclosure Type
Open
Nameplate Voltage
115V AC
Shaft Design
Round
Nameplate Service Factor
1

Description

Universal AC/DC Motor, Single Phase, 1/4 HP, Nameplate RPM 19,500 RPM, No. of Speeds 1, 115V AC Voltage, Non-Standard Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection One-Shot, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open, Motor Mounting Type Hole, Motor Mounting Position All Angle, Finish Enamel, Shaft Dia. 5/16 in, Shaft Length 1 3/16 in
