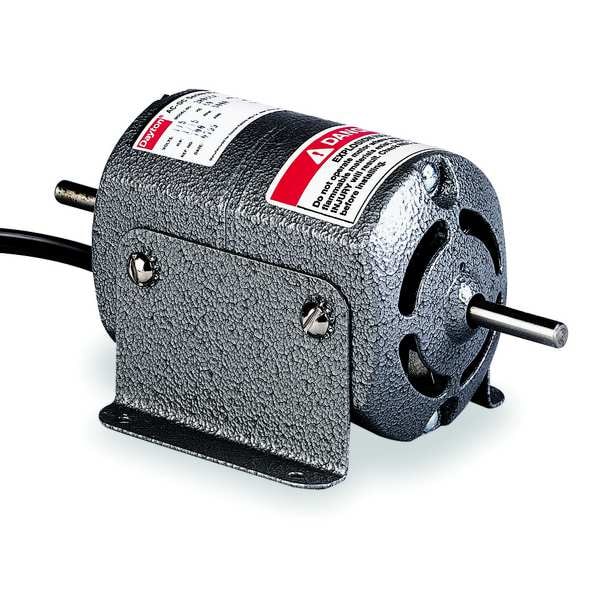

Universal AC/DC Mtr, 1/15hp, 5000 RPM, 115V

DAYTON| Zoro #: G2369841| Mfr #: 2M066

$72.02 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Motor Service Factor: 1.00Nameplate RPM: 5000Max. Ambient Temp.: 40 Degrees C
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2369841 Mfr #: 2M066
Motor Service Factor: 1.00Nameplate RPM: 5000
Max. Ambient Temp.: 40 Degrees CMotor Application: Universal AC/DC Motor
Motor Bearings: SleeveIns. Class: A
Motor Thermal Protection: NoneHP: 1/15
Application: Used in Appliances, Power Tools, Outdoor Equipment, Food Processing Equipment, Gearmotors, Blowers, Pumps and Other Applications Where High Horsepower Output and Small Size are RequiredFrame: Non-Standard
RPM Range: Over 3600Footnotes: 3,32
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Shaft Length: 2-5/16"
Body Dia.: 2-3/4"O.C. Mounting: 2-3/16 x 3"
Length Less Shaft: 4-7/16"Motor Enclosure Design: Open
Motor Mounting Type: Rigid BasePhase: 1
Voltage: 115Average Brush Life: 300 hr.
Mounting Holes: 4Motor Design: Universal AC/DC
Full Load Amps: 1.2Item: Universal AC/DC Motor
Shaft Dia.: 1/4"Hz: 60
Overall Length: 5-7/16"Motor Shaft Rotation: CCWSE
Motor Mounting Position: All AngleCountry of Origin (subject to change): United States

Description

Universal AC/DC Motor, Universal AC/DC, Open, 1/15 HP, Nameplate RPM 5000, Non-Standard Frame, Voltage 115, 60 Hz, 1 Phase, 1.2 Full Load Amps, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Mounting Holes 4, O.C. Mounting 2-3/16 x 3 In., Motor Thermal Protection None, Ins. Class A, 1.00 Motor Service Factor, Sleeve Motor Bearings, Max. Ambient Temp. 40 Degrees C, CCWSE Motor Shaft Rotation, Shaft Dia. 1/4 In., Shaft Length 1 In. & 1 In., Overall Length 5-7/16 In.
