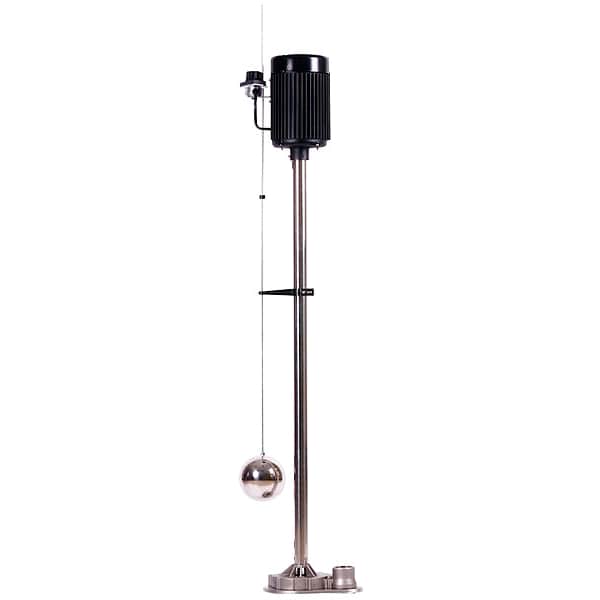

Dayton Upright Sump Pump, 1/3 HP 5URJ2 - main

Upright Sump Pump, 1/3 HP

  • Mfr # 5URJ2

  • Zoro # G0966777

product price: $963.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Stainless Steel
Voltage
115
HP
1/3 hp
Switch Actuation
Vertical Float
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5URJ2
Zoro #
G0966777
UPC #
190735352403
Country of Origin
China

Dimensions

Base to Motor Height
45"
Cord Length
8 ft
Height
55"
Diameter
11"
Cord Length - Pumps
8 ft.
Max. Diameter Solids
7/16 in
Max. Dia. Solids
7/16"
Base to Motor Height (In.)
45
Min. Sump Pit Dia.
18 in
Cord Size
16/3
Discharge Dia.
1 1/2 in
Overall Height
55 in
Body Dia.
11 in
Basket Dia.
45 in
Basin Dia.
45 in
Solids Diameter - Maximum
1/2 in
Body Diameter
11 in
Sump Pit Depth - Minimum
24 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in

Details

Housing Material
Stainless Steel
Voltage
115
HP
1/3 hp
Switch Actuation
Vertical Float
Phase
Single
Switch Electrical Connection
Integral
Outlet
1-1/2
Body Material
Stainless Steel
Switch Type
Vertical
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
44 gpm
Switch Type - Pumps
Vertical
Max. Head - Pumps
20 ft.
Item - Sump Pumps
Upright Sump Pump
Features
An Automatic Float Type Switch, Double Shielded Ball Bearings at Both Ends
Agency Compliance
cCSAus
Bearing Material
Carbon
Input Phase AC
1
Max. Head
20 ft
Item
Pedestal Sump Pump
Insulation Class
B
Amps
4 A
Column Material
Stainless Steel
On Point
11 in
Pump Body Material
Stainless Steel
Includes
Manual
Max. Liquid Temp.
200 Degrees F
Motor RPM
1725
Hz
60 Hz
Impeller Material
Stainless Steel
Base Material
Stainless Steel
Duty
Continuous
GPM of Water @ 10 Ft. of Head
44
Impeller Material - Pumps
Stainless Steel
Amps - Pumps
4.00
GPM of Water @ 5 Ft. of Head
54
Motor Type
PSC
Bearing Type
Sleeve
Cord Type
SJT
Float Material
Stainless Steel
Off Point
4 in
For Use With
Nonflammable Liquids Compatible with Pump Materials of Construction
Discharge NPT
1-1/2" F
Voltage - Pumps
120VAC
Thermal Protection
Auto
GPM of Water @ 15 Ft. of Head
30
NEC Cord Designation
SJT
Rated Voltage
120V AC
RPM
1,725 RPM
Alarm Included
No
Discharge
1-1/4 in FNPT
Flow Rate @ 15 Ft. of Head
30 gpm
Flow Rate @ 5 Ft. of Head
54 gpm
Discharge Gender
Female
Duty Cycle
Continuous
Discharge Standard
NPT
Application
For Pumping Clear Water Or Effluent from Wet Pits, Loading Docks, Boiler Dump Pits, Below Ground Vaults, Elevator Pits and Other Residential, Commercial And Industrial Applications, for Hot Water Applications Up to 200 Degrees Fahrenheit
Standards
cCSAus
Flow Rate @ 10 ft of Head
44 gpm
Impeller Design
Vortex
Includes Alarm
No Alarm Included
Frequency
60 Hz
Horsepower
1/3 hp
Feet of Head - Maximum
20 ft
Liquid Temperature - Maximum
200 Degrees F
Power Source
Corded Electric
Rotation Speed - Maximum
1,725 RPM
Volute Material
Stainless Steel
Current
4 A
For Media Type
Clear Water, Trash Water

Description

Pedestal Sump Pump, HP 1/3 hp, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Amps 4 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 4 in, On Point 11 in, Body Material Stainless Steel, Impeller Material Stainless Steel, Flow Rate @ 5 Ft. of Head 54 gpm, Flow Rate @ 10 Ft. of Head 44 gpm, Flow Rate @ 15 Ft. of Head 30 gpm, Max. Diameter Solids 7/16 in, Min. Sump Pit Dia. 18 in, Body Dia. 11 in, Overall Height 55 in, Basin Dia. 45 in
