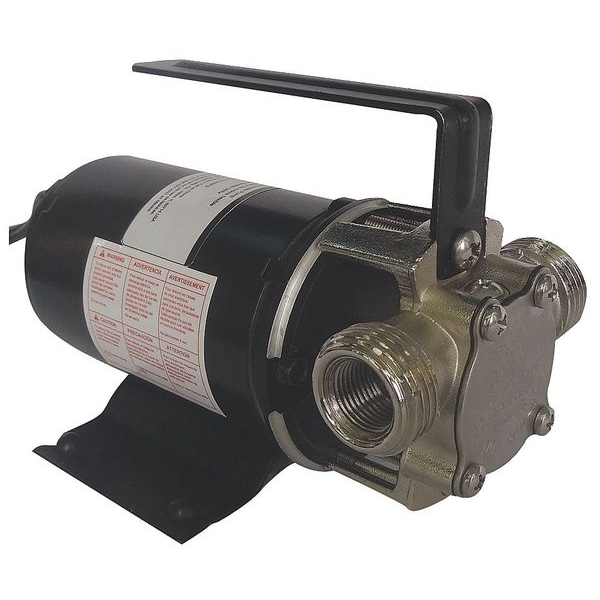

Dayton Utility Pump 12VDC 5UXL8 - main

Utility Pump 12VDC

  • Mfr # 5UXL8

  • Zoro # G1375911

product price: $170.99
/ea
Free Shipping & Returns

Key Features

HP
1/10 hp
Voltage
12 V DC
Amps AC
6.5 to 10
Motor Enclosure
Totally Enclosed Fan Cooled
Duty
Intermittent
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5UXL8
Zoro #
G1375911
UPC #
190735353561
Country of Origin
China

Dimensions

Shaft Dia. (In.)
63/200 in
Height (In.)
4 3/16 in
Length (In.)
6 1/8 in
Width (In.)
4 in
Cord Length
7 ft
Overall Length
6.1 in
Overall Height
4.2 in
Overall Width
4 in
Shaft Outer Diameter
3/8 in
Impeller Diameter
1 3/8 in
Media Intake Connection Size
3/8 in
Discharge Connection Size
3/4 in
Inlet Internal Diameter
3/8 in
Inlet External Diameter
3/4 in
Discharge Internal Diameter
3/8 in
Discharge External Diameter
3/4 in

Details

Item
Utility Pump
HP
1/10 hp
Voltage
12 V DC
Amps AC
6.5 to 10
Motor Enclosure
Totally Enclosed Fan Cooled
Duty
Intermittent
Inlet/Outlet (In.)
3/8 ID; 3/4 OD Garden Hose
GPM of Water @ 5 Ft. of Head
3.72 gpm
Max. Head (Ft.)
36.7 ft
Max. Pressure (PSI)
19.9 psi
Impeller
Buna-N
GPH of Water @ 30 Total Ft. of Head
150 gph
Max. Liquid Temp. (F)
140 Degrees F
Self-Priming
Yes
GPH of Water @ 1 Ft. of Head
300 gph
Max. Suction Lift (Ft.)
7 ft
GPH of Water @ 10 Ft. of Head
240 gph
RPM
4,000 RPM
GPH of Water @ 20 Ft. of Head
202 gph
Includes
Gasket, Two Impellers
Shaft Material
Stainless Steel
Seals
Buna N Radial Lip
Bearings
Ball
Pumps Up To (Ft.)
46 ft
GPM of Water @ 30 Ft. of Head
2.5 gpm
Cord
7 ft
GPH of Water @ 5 Total Ft. of Head
3 gph
Type
Compact Flexible Impeller
Body Material
Nickel-Plated Brass
GPH of Water @ 40 Total Ft. of Head
96 gph
Motor Type
DC
Application
Use to Empty Waterbeds, Drain Water Heaters or Aquariums, Pump Out Basement, Transfer Water to RV, Pump Boat Bilges, Pump Out Stock Tanks or Water Transfer. For Use With Nonflammable Liquids
GPM of Water @ 10 Ft. of Head
3.32 gpm
GPM of Water @ 20 Ft. of Head
2.31 gpm
Housing Material
Brass
Impeller Material
Buna-N
Operating Pressure - Maximum
15.9 psi
Flow Rate @ 1 ft of Head - Maximum
3.9 gpm
Discharge Connection Type
Hose
Nameplate Voltage
12V DC
Wetted Material
Brass, Buna-N
Seal Type
Lip
Media Temperature - Maximum
140 Degrees F
Horsepower - Maximum
1/10 hp
Phase
Single
Flow Rate @ 10 ft of Head - Maximum
3.3 gpm
Flow Rate @ 30 ft of Head - Maximum
1.2 gpm
Media Intake Connection Type
MGHT
Feet of Head - Maximum
36.7 ft
Seal Material
Buna-N
Suction Lift - Maximum
7 ft
Motor Mounting Type
Horizontal
Priming
Self-Priming
Current
10 A
Bearing Type
Ball
Flow Rate @ 20 ft of Head - Maximum
2.3 gpm
For Media Type
Water
Media Temperature - Minimum
40 Degrees F
Motor Speed - Maximum
4,000 RPM
Bearing Material
Stainless Steel
Inlet Internal Standard
NPT
Discharge Internal Standard
NPT
Discharge External Gender
Male
Inlet External Standard
Garden Hose Thread
Discharge External Standard
Garden Hose Thread
Inlet Internal Gender
Female
Discharge Internal Gender
Female
Inlet External Gender
Male

Description

Utility Pump, Housing Material Brass, Horsepower - Maximum 1/10 hp, Nameplate Voltage 12V DC, Flow Rate @ 10 ft of Head - Maximum 3.3 gpm, Viscosity - Maximum Not Applicable, Feet of Head - Maximum 36.7 ft, Discharge Connection Size 3/4 in, Media Intake Connection Size 3/8 in, Media Intake Connection Type MGHT, Impeller Material Buna-N, Discharge Connection Type Hose, Cord Length 7 ft, Priming Self-Priming, Operating Pressure - Maximum 15.9 psi, Suction Lift - Maximum 7 ft

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
