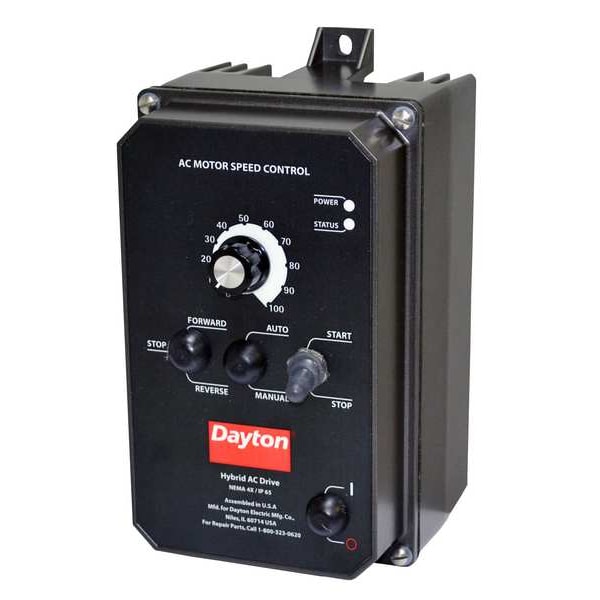

Dayton Variable Freq Drive, 1HP, 120/208-240V 13E632 - main

Variable Freq Drive, 1HP, 120/208-240V

  • Mfr # 13E632

  • Zoro # G3984041

product price: $468.99
/ea
Free Shipping & Returns

Key Features

Torque @ 1 Hz
100%
Input Frequency
50/60 Hz
Max. Output Amps
3.6 A
Adjustable Deceleration Time
0.3 to 20 sec
Enclosure
Totally Enclosed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
13E632
Zoro #
G3984041
UPC #
190735117590
Country of Origin
Mexico

Dimensions

Width
5.51 in
Height
9.53 in
Depth
5.86 in
Overall Height
9 1/2 in
Overall Width
5 1/2 in
Overall Depth
5 7/8 in

Details

Torque @ 1 Hz
100%
Input Frequency
50/60 Hz
Max. Output Amps
3.6 A
Adjustable Deceleration Time
0.3 to 20 sec
Enclosure
Totally Enclosed
Display Type
LED
Dynamic Braking
Injection Braking
With Line Contactor / No Line Contactor
No Line Contactor
With Bypass / No Bypass
No Bypass
For Use With
3-Phase Inverter Duty or TENV Motor
Key Pad Lockout
None
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Control Type
Dial
Start/Stop Control
Manual
Standards
UL, CSA, CE
Output Voltage
230V AC
Input Phase AC
Single
Max. HP
1 hp
Input Voltage
115/230V AC
Starting Torque
200%
Output Frequency Range
0 to 120 Hz
Output Phase AC
Three
Displays
LED Touch Screen
Control Method
Dial
Protection
Current Limit, Electronic Inrush Current Limit (EICL), MOV Input Transient Suppression, Nuisance Tripping, Overload, Overvoltage, Regeneration Protection, Ride Through, Short Circuit, Under voltage
Adjustable Acceleration Time
0.3 to 20 sec
Item
Variable Frequency Drive
Digital Readout
No
Accepts Input Control Signal
With Signal Isolator Option
Application
Actuators, Air Cleaners, Amusement Rides, and Sprayers, Ball Pitching Machines, Blowers, Boat Lifts, Bowling Alley Lane Cleaners, CNC, Conveyors, Door and Gate Openers, Drilling, Duct Cleaners, Dumbwaiters, Elevators and Hoists, Exercise Equipment, Fabric Processing, Fans, Feeders, Film Processing, Floor Cleaning, Food Processing, Garment Cutting, Grinding and Polishing, Hoppers, Horse Walkers, HV AC, Indexers, Irrigation, Laminating, Lift Station Pumps, Machine Tools, Medical, Milling, Mixers, Oven Conveyors, Packaging, Paint Blenders, Paper Handling, Portable Equipment Used with GFCIs, Pottery Wheels, Printing, Pumps, Range Hoods, Sandblasting, Saws, Sewing, Shakers, Stretch Wrap, Textile, Therapeutic Vibrators, Treadmills, Washing Machines, Wave Soldering, Web Processing, Wheelchair Lifts, Whole House V ACuums and Attic Fans, Winders and Unwinders, Wire Feeders, Wood and Metal Lathes and Cutters
Maximum Output Power
1 hp
Enclosure Rating
NEMA 4X
Color
Black/Gray
Maximum Output Current
3.6 A
Enclosure Material
Aluminum

Description

Variable Frequency Drive, Input Voltage 115/230V AC, Input Phase AC Single, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 3.6 A, Output Voltage 230V AC, Output Phase AC Three, Output Frequency Range 0 to 120 Hz, Enclosure Rating NEMA 4X
