Dayton

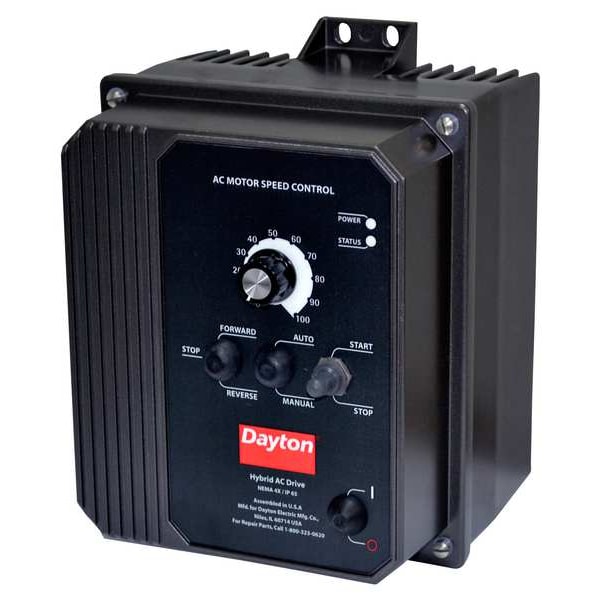

Variable Frequency Drive, 3 HP, 480VAC

product price: $680.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Output Phase AC Three
  • Display Type LED
  • Protection Current Limit, Electronic Inrush Current Limit (EICL), MOV Input Transient Suppression, Nuisance Tripping, Overload, Overvoltage, Phase loss, Regeneration Protection, Ride Through, Short Circuit, Under voltage
  • Input Frequency 50/60 Hz
  • Enclosure Totally Enclosed
See all product information

Product Information

Dimensions

Depth 7.25 in
Width 7.55 in
Height 9.8 in
Overall Depth 7 1/4 in
Overall Height 9 3/4 in
Overall Width 7 1/2 in

Details

Output Phase AC Three
Display Type LED
Protection Current Limit, Electronic Inrush Current Limit (EICL), MOV Input Transient Suppression, Nuisance Tripping, Overload, Overvoltage, Phase loss, Regeneration Protection, Ride Through, Short Circuit, Under voltage
Input Frequency 50/60 Hz
Enclosure Totally Enclosed
Item Variable Frequency Drive
Max. HP 3 hp
Max. Output Amps 4.6 A
Dynamic Braking Injection Braking
Output Voltage 460V AC
Starting Torque 200%
Control Type Dial
Control Method Dial
Standards UL, CSA, CE
Adjustable Acceleration Time 0.3 to 20 sec
With Line Contactor / No Line Contactor No Line Contactor
Output Frequency Range 0 to 120 Hz
Input Voltage 460V AC
Adjustable Deceleration Time 0.3 to 20 sec
Start/Stop Control Manual
Green Environmental Attribute Product Contributes To Reducing Energy Consumption
For Use With 3-Phase Inverter Duty or TENV Motor
Key Pad Lockout None
With Bypass / No Bypass No Bypass
Accepts Input Control Signal With Signal Isolator Option
Digital Readout No
Input Phase AC Three
Torque @ 1 Hz 100%
Displays LED Touch Screen
Maximum Output Power 3 hp
Color Black/Blue/Gray
Maximum Output Current 5.5 A
Enclosure Rating NEMA 4X
Enclosure Material Aluminum
Application Actuators, Air Cleaners, Amusement Rides, and Sprayers, Ball Pitching Machines, Blowers, Boat Lifts, Bowling Alley Lane Cleaners, CNC, Conveyors, Door and Gate Openers, Drilling, Duct Cleaners, Dumbwaiters, Elevators and Hoists, Exercise Equipment, Fabric Processing, Fans, Feeders, Film Processing, Floor Cleaning, Food Processing, Garment Cutting, Grinding and Polishing, Hoppers, Horse Walkers, HV AC, Indexers, Irrigation, Laminating, Lift Station Pumps, Machine Tools, Medical, Milling, Mixers, Oven Conveyors, Packaging, Paint Blenders, Paper Handling, Portable Equipment Used with GFCIs, Pottery Wheels, Printing, Pumps, Range Hoods, Sandblasting, Saws, Sewing, Shakers, Stretch Wrap, Textile, Therapeutic Vibrators, Treadmills, Washing Machines, Wave Soldering, Web Processing, Wheelchair Lifts, Whole House V ACuums and Attic Fans, Winders and Unwinders, Wire Feeders, Wood and Metal Lathes and Cutters

Description

Variable Frequency Drive, Input Voltage 460V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 3 hp, Maximum Output Current 5.5 A, Output Voltage 460V AC, Output Phase AC Three, Output Frequency Range 0 to 120 Hz, Enclosure Rating NEMA 4X
