  11. Vibrator Motor, 1/100 HP, 1625 RPM, 115 V

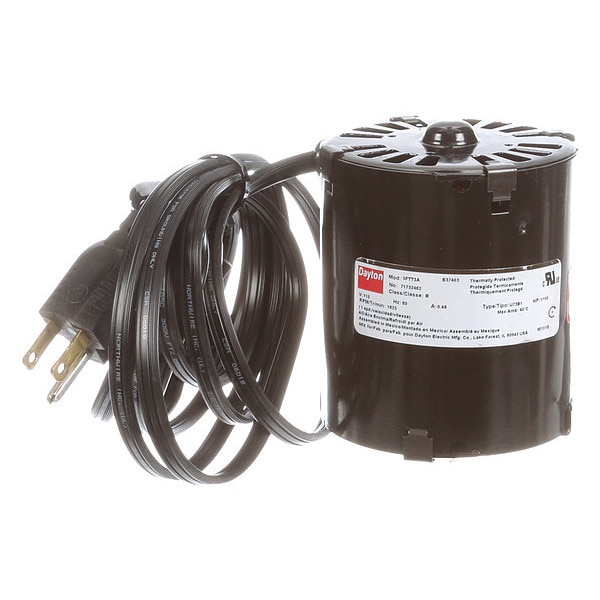

Dayton Vibrator Motor, 1/100 HP, 1625 RPM, 115 V 71732462M - main

Vibrator Motor, 1/100 HP, 1625 RPM, 115 V

  • Mfr # 71732462M

  • Zoro # G2806982

product price: $124.99
/ea
Free Shipping & Returns

Key Features

HP
1/100 hp
Force
5 lbf
Nameplate RPM
1,625 RPM
Velocity
2.2 in/sec
Motor Bearings
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71732462M
Zoro #
G2806982
UPC #
00190735343760
Country of Origin
Mexico

Dimensions

Body Dia.
3 1/2 in
Overall Length
3 1/2 in

Details

HP
1/100 hp
Force
5 lbf
Nameplate RPM
1,625 RPM
Velocity
2.2 in/sec
Motor Bearings
Ball
Motor Enclosure Design
Open
Voltage
115V AC
Item
Vibrator Motor
Motor Design
Shaded Pole
RPM Range
1,601-1,700
Hz
60 Hz
Motor Mounting Type
C-Face
Motor Mounting Position
All Angle
Standards
CSA Certified (244617), UL Recognized (E37403)
Ins. Class
B
Motor Thermal Protection
Auto
Phase
Single
Full Load Amps
0.65 A
Includes
9 ft 3-Conductor Cord Set
Ambient Temperature
40 Degrees C
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Weight
3.29 lb
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
On/Off Switch
On/Off Switch Included
Motor Service Factor
1
Frame
3.3 in
Motor Shaft Rotation
CWSE
Usable @ 208V
Not Usable at 208V

Description

Vibrator Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.65 A, 3.3 in Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Open, Motor Mounting Type C-Face, Motor Mounting Position All Angle, Force 5 lbf, Velocity 2.2 in/sec, Motor Bearings Ball, Overall Length 3 1/2 in, Body Dia. 3 1/2 in, Weight 3.29 lb
