Shop LEESON

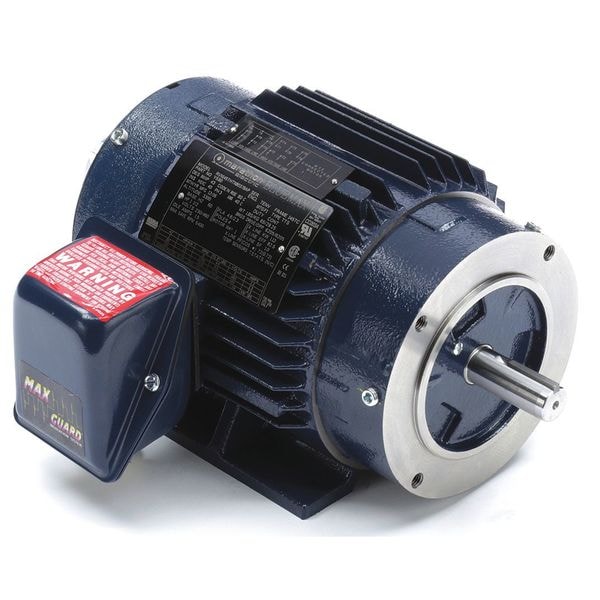

Vector Motor, 3-Phase, 1HP, 230/460V

  • Mfr # 145THTN8037
  • Zoro # G5834762
product price:
$
1,156.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1
Nameplate RPM
1,756
Speed Range
2,000:1
Max. Speed
5,400 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
145THTN8037
Zoro #
G5834762
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Length
14 11/16 in
Shaft Length
2 1/8 in
Shaft Dia.
7/8 in
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Encoder Shaft Length
1 3/4 in
Encoder Shaft Diameter
5/8 in
Frame Size
143TC
Shaft Diameter
7/8 in
Wire Rope Length
14 11/16 in
Length
14 11/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
1
Nameplate RPM
1,756
Speed Range
2,000:1
Max. Speed
5,400 RPM
Frame
143TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Motor Bearings
Ball
Motor Shaft Design
Keyed
Motor Mounting Type
Rigid Base
Ins. Class
H
Motor Efficiency Group
NEMA Premium Efficient
Frame Material
Cast Iron
Standards
CE, UL Recognized
Encoder Shaft
5/8 in x 1-3/4 in
Warranty
3 yr
Motor Shaft Rotation
CW/CCW
Full Load Amps
3.0/1.5 A
Finish
Enamel
Duty
Continuous
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Application
Crane
RPM Range
1,701-1,800
Phase
Three
Max. Operating Frequency
120 Hz
Motor Mounting Position
Horizontal
NEMA Design
A
Insulation Feature
Class F
Motor Service Factor
1
CC Number
CC003A
Encoder Acceptable
Yes
Ambient Temperature
40 Degrees C
Base
Rigid
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Nominal Efficiency
82.5 %
Motor Frame Material
Cast Iron
Hz
60 Hz
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
65 lb
No. of Speeds
1
Max. Ambient Temp.
104 Degrees F
Conduit Box Position
F1, F2
Inverter Rated
Inverter Rated
Frequency
60 Hz
Maximum Speed
5,400 RPM
Nameplate Service Factor @ 60 Hz
1
Maximum Operating Frequency
120 Hz
Product Type
Vector Motor
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Insulation Class
H
Frame Finish
Enamel-Coated
Shaft Design
Keyed
Efficiency Rating
NEMA Standard Efficiency
NEMA Design Class
A
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Full Load Current @ 60 Hz
3.0/1.5 A

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,756, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, Max. Speed 5,400 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
