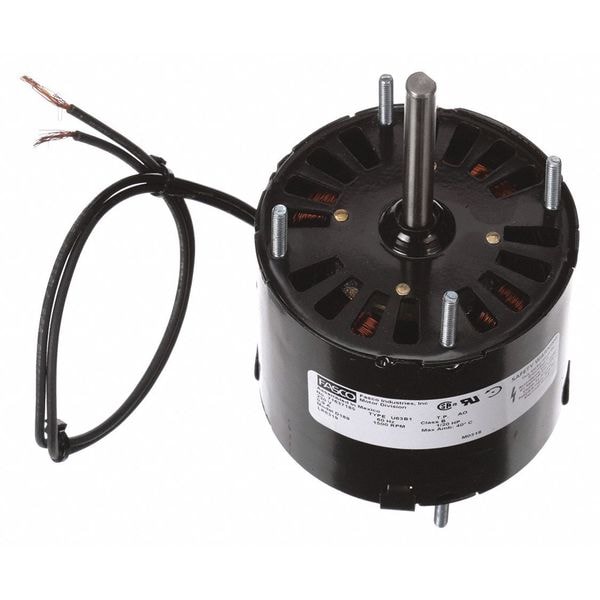

Fasco HVAC Motor, 1/20 HP, 1500 rpm, 230V, 3.3 D189 - main

HVAC Motor, 1/20 HP, 1500 rpm, 230V, 3.3

  • Mfr # D189

  • Zoro # G5301572

product price:  $75.89
/ea

Key Features

Voltage
230V AC
Nameplate RPM
1,500
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
D189
Zoro #
G5301572
UPC #
663001024897
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/4 in
Body Dia.
3 5/16 in
Length Less Shaft
3 5/16 in
Shaft Dia.
5/16 in
Overall Length
5 7/16 in
Bolt Circle Dia.
2 7/8 in
Stud Size
#8-32
Lead Length
12 in
Bolt Circle Diameter
2 7/8 in
Body Diameter
3.3 in
Frame Size
3.3
Mounting Stud Thread Size
#8-32
Shaft Diameter
5/16 in

Details

Voltage
230V AC
Nameplate RPM
1,500
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
RPM Range
1,401-1,500
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Number of Shafts
1
Motor Shaft Rotation
CCWSE
Mounting Stud Location
4/Both Ends
Motor Sub Application
Direct Drive Fan/Blower
Motor Mounting Type
Ring/Stud
Ins. Class
B
Motor Application
HVAC/R
Full Load Amps
0.9 A
No. of Speeds
1
Motor Design
Shaded Pole
Max. Ambient Temp.
40 Degrees C
Application
Fan/Blower
Motor Service Factor
1
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Motor Bearings
Sleeve
Item
Fan and Blower Motor
Frame
3.3
Motor Thermal Protection
Auto
Phase
Single
Mounting Pattern
2-7/8 x 2-7/8
Duty
Continuous
Standards
CSA Certified, UL Recognized
Hz
60 Hz
Motor Shaft Design
Flat
Capacitor Required
Capacitor Not Required
Usable @ 208V
Not Usable at 208V
Weight
3 lb
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Mounting Holes
(8) #8-32
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Mounting
Stud
Full Load Current @ 60 Hz
0.9 A
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Wattage
40 W
Frame Material
Steel
Shaft Design
Flat
Motor Enclosure Type
Open Air Over
Insulation Class
B
Product Type
Fan and Blower Motor
Drive Type
Direct Drive
Bearing Type
Sleeve
Sub Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 230V AC, 0.9 A Full Load Amps, 3.3 Frame, Output Watts 40 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
