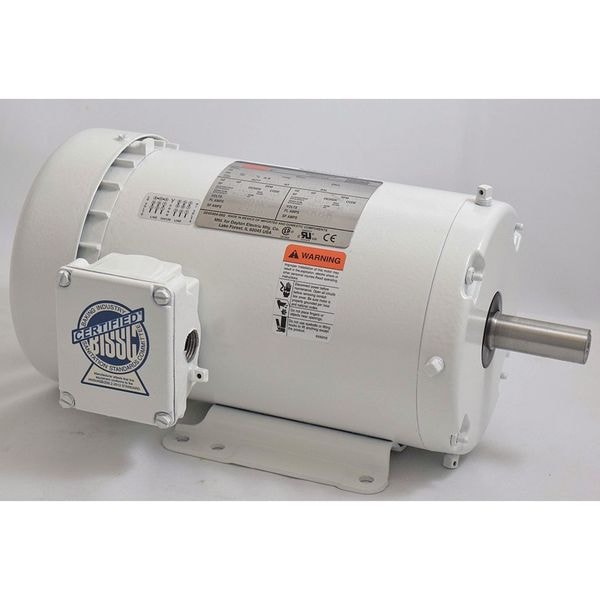

Washdown Motor, 3 Ph, TEFC, 2 HP, 1745 rpm

DAYTON| Zoro #: G0387861| Mfr #: 5XAT5

$612.13 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0387861 Mfr #: 5XAT5
Motor Service Factor: 1.15Motor Shaft Rotation: CW/CCW
Motor Bearings: BallMotor Enclosure Design: Totally Enclosed Fan-Cooled
Item: Washdown MotorPhase: 3
Ins. Class: FMax. Ambient Temp.: 40 Degrees C
Motor Application: WashdownHP: 2
Motor Thermal Protection: NoneMotor Design: 3-Phase
Duty: ContinuousApplication: High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Conduit Box: Cast Aluminum with Buna N Gasketed CoverVoltage Compatibility: 460, 230/460, 220-230/460
Drain Plugs: (3) Shaft End, (4) Lead End, (2) In Conduit BoxStandards: UL Recognized (E47479), CSA Certified (LR225293), USDA Approved
Inverter Rated: YesShaft Material: 303 Stainless Steel
Length Less Shaft: 11-3/8"Shaft Length: 2-1/4"
Shaft Dia.: 7/8"Overall Length: 13-3/4"
Body Dia.: 6-5/8"Nominal Efficiency: 86.5%
Frame: 145THz: 60/50
NEMA Design: BFootnotes: 8, 11
Endshields: Cast AluminumNameplate RPM: 1745
Motor Shaft Design: KeyedMotor Mounting Position: All Angle
Frame Material: Epoxy CoatedFull Load Amps: 5.8/2.9
Motor Mounting Type: Rigid BaseVoltage: 230/460
Country of Origin (subject to change): United States

Product Description

Washdown Motor, 3-Phase, 2 HP, 1745 Nameplate RPM, Voltage 230/460, Phase 3, 145T Frame, Totally Enclosed Fan-Cooled, Full Load Amps 5.8/2.9, 60/50 Hz, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 13-3/4 In., Shaft Dia. 7/8 In., Shaft Length 2-1/4 In., Body Dia. 6-5/8 In., Length Less Shaft 11-3/8 In., Continuous Duty, Frame Material Epoxy Coated, Shaft Material 303 Stainless Steel
