  10. /
  11. HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3
Shop All 3.3 Inch Diameter Motors
Dayton

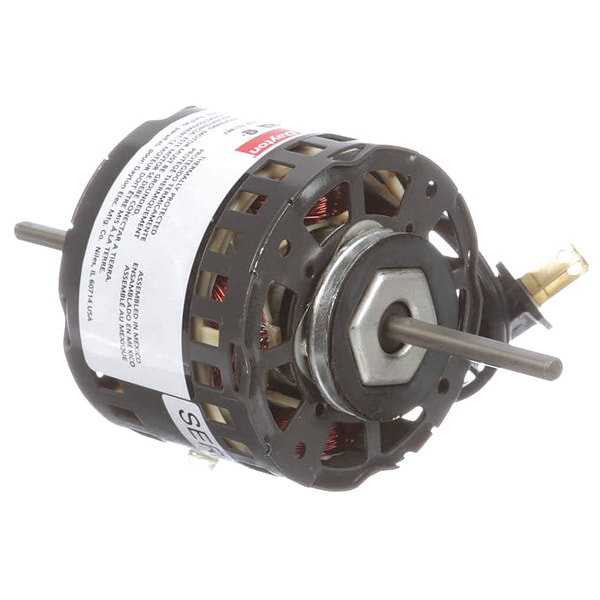

HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3

product price: $64.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Totally Enclosed Air-Over
  • Number of Speeds 1
  • HP 1/25
See all product information

Product Information

Dimensions

Shaft Dia. 1/4 in
Shaft Length 1 15/16 in
Length Less Shaft 3 3/8 in
Body Dia. 3 5/16 in
Cord Length 10 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Totally Enclosed Air-Over
Number of Speeds 1
HP 1/25
RPM Range 1,501-1,600
Phase Single
No. of Speeds 1
Duty Continuous
Motor Mounting Type Stud
Mounting Stud Location 4/Opposite Shaft End
Motor Application HVAC/R
Includes Cordset, Plug
Motor Service Factor 1
Frame 3.3
Motor Shaft Rotation CWSE
Ins. Class B
Full Load Amps 1.4 A
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application Direct Drive Fan/Blower
Motor Thermal Protection Auto
Motor Design Shaded Pole
Stud/Base Mtg. Pattern 2 in x 2 in
Max. Ambient Temp. 40 Degrees C
Application OEM and Replacement Use In A Wide Variety of Fan and Blower
Mounting Pattern 2 x 2
Plug Type 2 Prong Non-Polarized
Hz 60 Hz
Number of Shafts 1
Motor Bearings Sleeve
Footnotes 3
Motor Shaft Design Flat
Item HVAC Motor
Capacitor Required No
Motor Mounting Position All Angle
Usable @ 200V No
Usable @ 208V No
Duty Cycle Continuous
Mounting Stud Pattern 2 in x 2 in
Type OEM Replacement
Mounting Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/25 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.4 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
