  11. Washdown Motor, 3 Ph, TEFC, 2 HP, 1750 rpm
Shop All DC Washdown Motors
Dayton

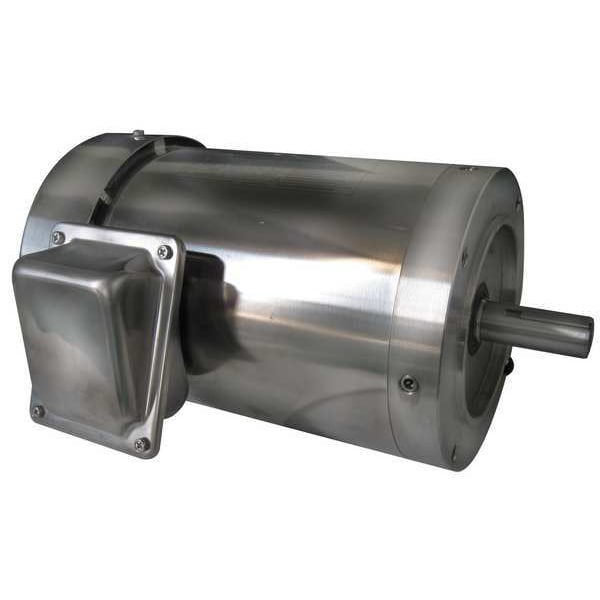

Washdown Motor, 3 Ph, TEFC, 2 HP, 1750 rpm

product price: $871.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • RPM Range 1,701-1,800
  • Voltage 230/460V AC
  • Frame 56C
See all product information

Product Information

Dimensions

Overall Length 13 1/4 in
Shaft Length 1 7/8 in
Shaft Dia. 5/8 in

Details

Item Washdown Motor
Motor Design 3-Phase
Phase Three
HP 2
RPM Range 1,701-1,800
Voltage 230/460V AC
Frame 56C
Motor Frame Material Stainless Steel
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Fan-Cooled
Hz 60 Hz
Shaft Material 300 Series Stainless Steel
Frame Material Stainless Steel
Full Load Amps 6.0/3.0 A
Footnotes 2
Endshields 300 Series Stainless Steel
Ins. Class F
Max. Ambient Temp. 40 Degrees C
Motor Shaft Design Keyed
Nominal Efficiency 86.5 %
Motor Shaft Rotation CW/CCW
Motor Mounting Type Face
Inverter Rated Yes
CC Number CC082A
Standards CE Compliant, CSA Certified, UL Component Recognized
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application Washdown
Motor Service Factor 1.15
Nameplate RPM 1,750
Drain Plugs 4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)
Motor Bearings Ball
Duty Continuous
Duty Cycle Continuous
Endshield Material 300 Series Stainless Steel

Description

Washdown Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,750, Voltage 230/460V AC, Full Load Amps 6.0/3.0 A, 56C Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Motor Frame Material Stainless Steel, Endshield Material 300 Series Stainless Steel
