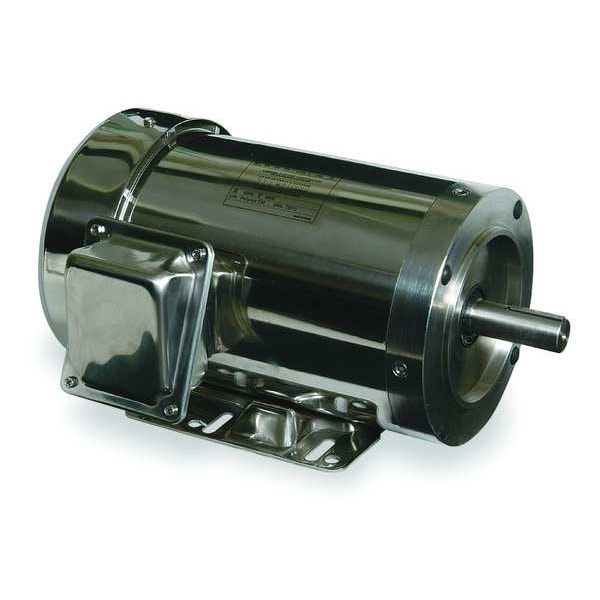

Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 1750 rpm

DAYTON| Zoro #: G1300713| Mfr #: 6WY42

$621.15 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1300713 Mfr #: 6WY42
Motor Service Factor: 1.15Motor Enclosure Design: Totally Enclosed Fan-Cooled
Max. Ambient Temp.: 40 Degrees CMotor Design: 3-Phase
Phase: 3Ins. Class: F
HP: 1-1/2Motor Application: Washdown
Duty: ContinuousMotor Shaft Rotation: CW/CCW
Motor Bearings: BallItem: Washdown Motor
Motor Thermal Protection: NoneDrain Plugs: 4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)
Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460Nominal Efficiency: 84.0%
Frame: 56HCHz: 60
Endshields: 300 Series Stainless SteelNameplate RPM: 1750
Full Load Amps: 4.0/2.0Motor Shaft Design: Keyed
Frame Material: Stainless SteelVoltage: 230/460
Motor Mounting Type: Face/BaseShaft Material: 300 Series Stainless Steel
Inverter Rated: YesShaft Length: 1-7/8"
Footnotes: 2Shaft Dia.: 5/8"
Overall Length: 13-1/4"Country of Origin (subject to change): China

Product Description

Washdown Motor, 3-Phase, 1-1/2 HP, 1750 Nameplate RPM, Voltage 208-230/460, Phase 3, 56HC Frame, Totally Enclosed Fan-Cooled, Full Load Amps 4.1-4.0/2.0, 60 Hz, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 13-1/4 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Continuous Duty, Frame Material Stainless Steel, Shaft Material 300 Series Stainless Steel
