  11. Washdown Motor, 3 Ph, TENV, 1/2 HP, 3450 rpm

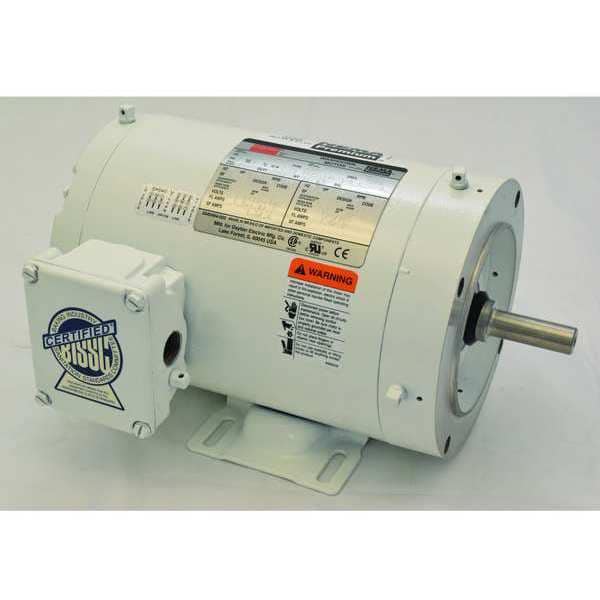

Dayton Washdown Motor, 3 Ph, TENV, 1/2 HP, 3450 rpm 1TRZ7 - main

Washdown Motor, 3 Ph, TENV, 1/2 HP, 3450 rpm

  • Mfr # 1TRZ7

  • Zoro # G1106323

product price: $960.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TRZ7
Zoro #
G1106323
UPC #
190735147702
Country of Origin
Mexico

Dimensions

Overall Length
10 9/16 in
Length Less Shaft
9 11/16 in
Shaft Length
2 in
Shaft Dia.
5/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Mounting Type
C-Face, Rigid Base
Motor Application
General Purpose
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nameplate RPM
3,550 RPM
Ins. Class
F
Conduit Box
Cast Oversized Gasketed
Motor Bearings
Ball
Full Load Amps
1.4/0.7 A
Nominal Efficiency
82.5 %
Motor Service Factor
1.15
Shaft Material
303
Drain Plugs
(2) in Conduit Box, (4) Each End
Inverter Rated
Inverter Rated
Max. Ambient Temp.
40 Degrees C
NEMA Design
B
Duty
Continuous
Frame Material
Epoxy Coated
CC Number
CC030A
Standards
CSA Certified (LR63596), UL Recognized (E47479), USDA Approved
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 3,550 RPM, Voltage 230/460V AC, Full Load Amps 1.4/0.7 A, 56C Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
