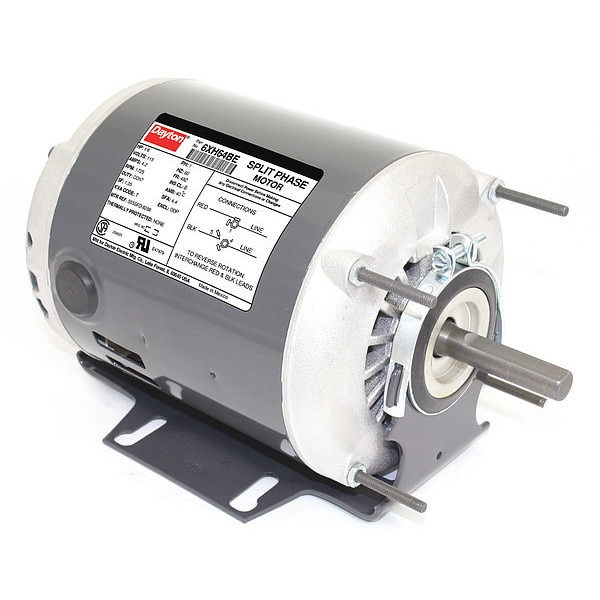

GP Mtr, Split Ph, ODP, 1/6 HP, 1725 rpm, 48Z

DAYTON| Zoro #: G1982127| Mfr #: 6XH64

$113.40 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Motor Shaft Design: KeyedNameplate RPM: 1725Nominal Efficiency: 43.4%
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1982127 Mfr #: 6XH64
Motor Shaft Design: KeyedNameplate RPM: 1725
Nominal Efficiency: 43.4%Motor Application: General Application
Motor Bearings: BallIns. Class: B
Motor Thermal Protection: NoneHP: 1/6
Frame: 48ZFrame Material: Rolled steel
RPM Range: 1701-1800Footnotes: 39
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Shaft Length: 1-7/8"
RPM Group: 1701-1800Item: General Purpose Motor
Length Less Shaft: 7-15/16"Standards: UL (E47479), CSA (156060)
Motor Efficiency Group: Standard EfficientNo. of Speeds: 1
Phase: 1Voltage: 115
Motor Design: Split-PhaseFull Load Amps: 4.2
Motor Enclosure Design: Open DripproofDuty: Continuous
Motor Mounting Type: Cradle BaseShaft Dia.: 1/2"
Hz: 60Manufacturers Warranty Length: 1 yr.
Motor Service Factor: 1.35Overall Length: 9-5/16"
Motor Shaft Rotation: CW/CCWMax. Ambient Temp.: 40 Degrees C
Country of Origin (subject to change): Mexico

Description

General Purpose Motor, Split-Phase, Open Dripproof, 1/6 HP, Nameplate RPM 1725, 48Z Frame, Voltage 115, 60 Hz, 1 Phase, 4.2 Full Load Amps, No. of Speeds 1, Motor Mounting Type Cradle Base, Motor Thermal Protection None, Ins. Class B, 1.35 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 9-5/16 In., Motor Shaft Design Keyed
