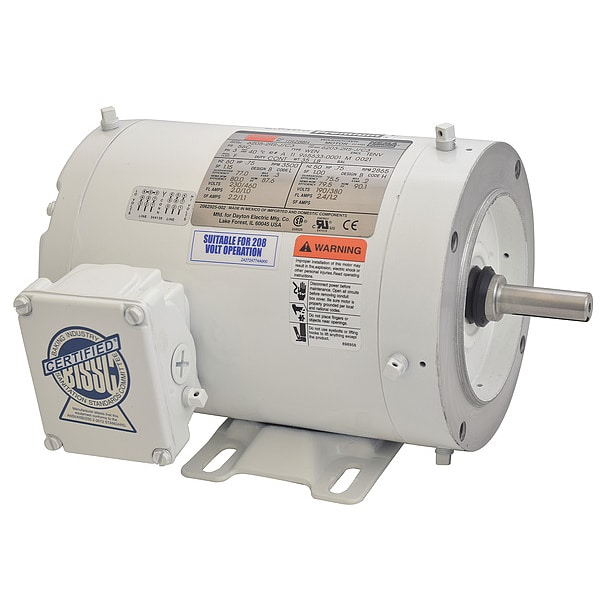

Washdown Motor, 3 Ph, TENV, 3/4 HP, 3450 rpm

DAYTON| Zoro #: G2338454| Mfr #: 1TRZ8

$351.75 /ea

This item ships free. Details.Standard ground shipping.
Details:
Overall Length: 11-3/4"
Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Duty: Continuous
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2338454 Mfr #: 1TRZ8
Overall Length: 11-3/4"Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Duty: ContinuousRPM Range: 3001-3600
NEMA Design: BHP: 3/4
Phase: 3Motor Application: Washdown
Length Less Shaft: 9-1/4"Motor Thermal Protection: None
Frame Material: Epoxy CoatedFrame: 56c
Voltage: 230/460Motor Enclosure Design: Totally Enclosed Nonventilated
Nominal Efficiency: 80.0%Motor Shaft Design: Keyed
Motor Design: 3-PhaseShaft Length: 2"
Standards: UL Recognized (E47479), CSA Certified (LR63596), USDA ApprovedMax. Ambient Temp.: 40 Degrees C
Hz: 60Drain Plugs: (4) Each End, (2) In Conduit Box
Motor Mounting Type: Face/BaseShaft Material: 303 Stainless Steel
Motor Service Factor: 1.15Motor Bearings: Ball
Shaft Dia.: 5/8"Motor Mounting Position: All Angle
Conduit Box: Cast Oversized GasketedNameplate RPM: 3500
Full Load Amps: 2.0/1.0Inverter Rated: Yes
Motor Shaft Rotation: CW/CCWIns. Class: F
Country of Origin (subject to change): Mexico

Description

Washdown Motor, 3-Phase, 3/4 HP, 3450 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 2.6-2.4/1.2, 60 Hz, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11-3/4 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Length Less Shaft 9-1/8 In., Continuous Duty, Frame Material Epoxy Coated, Shaft Material 303 Stainless Steel
