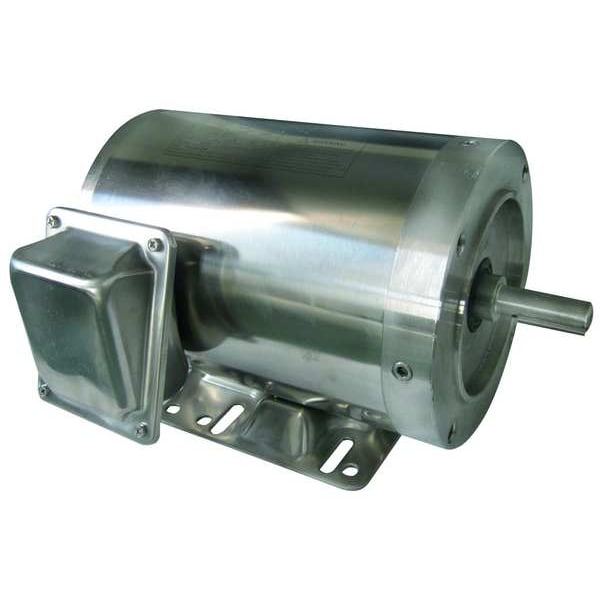

Washdown Motor, 3 Ph, TENV, 3/4 HP, 1745 rpm

DAYTON| Zoro #: G0881614| Mfr #: 6WY34

$547.70 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0881614 Mfr #: 6WY34
Motor Thermal Protection: NoneMotor Design: 3-Phase
Motor Shaft Rotation: CW/CCWItem: Washdown Motor
Inverter Rated: YesHP: 3/4
Max. Ambient Temp.: 40 Degrees CMotor Application: Washdown
Phase: 3Duty: Continuous
Motor Shaft Design: KeyedIns. Class: F
Motor Enclosure Design: Totally Enclosed NonventilatedMotor Service Factor: 1.15
Shaft Dia.: 5/8"Motor Bearings: Ball
Drain Plugs: 4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)Standards: UL Component Recognized, CSA Certified, CE Compliant
Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460Nameplate RPM: 1745
Full Load Amps: 2.3-2.2/1.1Frame Material: Stainless Steel
Endshields: 300 Series Stainless SteelVoltage: 208-230/460
Footnotes: 1Shaft Material: 300 Series Stainless Steel
Shaft Length: 1-7/8"Overall Length: 9-7/8"
Motor Mounting Type: Face/BaseNominal Efficiency: 82.5%
Hz: 60Frame: 56c
Country of Origin (subject to change): China

Product Description

Washdown Motor, 3-Phase, 3/4 HP, 1745 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 2.3-2.2/1.1, 60 Hz, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 9-7/8 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Continuous Duty, Frame Material Stainless Steel, Shaft Material 300 Series Stainless Steel
