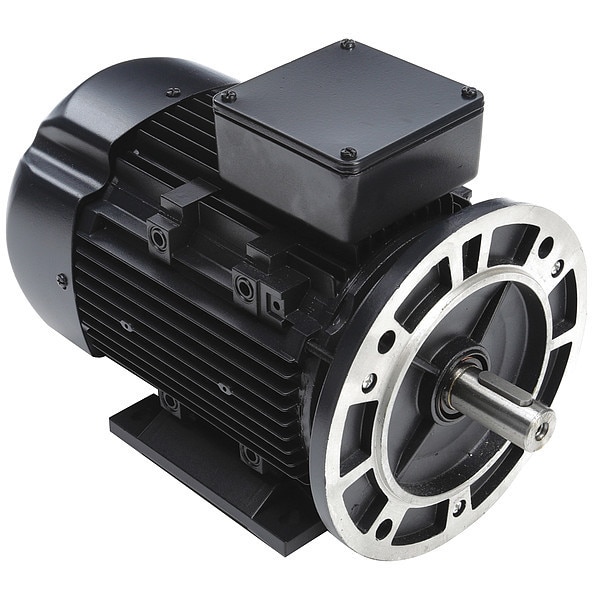

Leeson Three-Phase General Purpose Motor, 2 HP, 90L Frame, 230/460V AC Voltage, 1745 rpm Nameplate RPM 090LT17FH6519 - main

Three-Phase General Purpose Motor, 2 HP, 90L Frame, 230/460V AC Voltage, 1745 rpm Nameplate RPM

  • Mfr # 090LT17FH6519

  • Zoro # G5708927

product price:  $669.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1745 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
5.4/2.7 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
090LT17FH6519
Zoro #
G5708927
UPC #
-
Country of Origin
China

Dimensions

Length Less Shaft
276 mm
Overall Length
326 mm
Shaft Dia.
24 mm
Shaft Length
50 mm

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1745 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
5.4/2.7 A
Frame
90L
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Aluminum
Motor Mounting Position
Horizontal
Nominal Efficiency
87.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Weight
45 lb
Usable @ 200V
No
Usable @ 208V
No
Inverter Rated
Yes
Kw
1.49

Description

The LEESON - 090LT17FH6519 is a General Purpose Motor, a type of 3-phase AC motor widely used in industrial and commercial settings. This versatile tool converts electrical energy into mechanical energy to operate various types of machinery, from manufacturing lines to HVAC systems. It's rated for continuous duty cycle operation, which is based on manufacturer's specifications.

Key Features of the LEESON - 090LT17FH6519 General Purpose Motor:

  • CC Number: The unique identifier CC003A assigned by EASA classifies this motor based on design, specifications, and performance characteristics.
  • Frame: Its frame size is 90L which conforms to standard specifications for compatibility and interchangeability.
  • Full Load Amps: Rated to draw a maximum current of 5.4/2.7 A when operating at full capacity according to manufacturer's specifications.
  • NEMA Premium(R) Rated: Acknowledged as meeting certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
  • Horsepower (HP): Has a rated power output of 2 HP as per the manufacturer's specifications.
  • Inverter Rated: Compatible with being powered by a variable frequency drive as per the product design
  • Kilowatt (Kw): Has an output capacity of 1.49 Kw determining its efficiency in converting electrical energy into mechanical force
  • Max Ambient Temp.: Rated for efficient operation up to temperatures of 40 Degrees C based on manufacturer's guidelines
