  11. Washdown Motor, 3 Ph, TENV, 3/4 HP, 1745 rpm

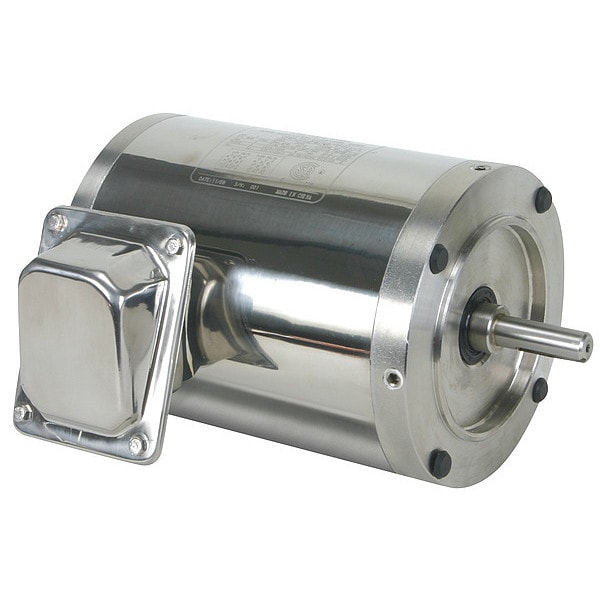

Dayton Washdown Motor, 3 Ph, TENV, 3/4 HP, 1745 rpm 6WY55 - main

Washdown Motor, 3 Ph, TENV, 3/4 HP, 1745 rpm

  • Mfr # 6WY55

  • Zoro # G1259054

product price: $863.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6WY55
Zoro #
G1259054
UPC #
190735372364
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Overall Length
9 3/4 in
Shaft Length
1 7/8 in
Body Dia.
6.47 in
Length Less Shaft
10 1/2 in
Manufacturers Warranty Length
2 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Max. Ambient Temp.
40 Degrees C
Full Load Amps
2.3-2.2/1.1 A
Standards
CE Compliant, CSA Certified, UL Component Recognized
Ins. Class
F
Motor Application
Car Wash
Motor Shaft Rotation
CW/CCW
Shaft Material
304
Endshields
300 Series Stainless Steel
Frame Material
Stainless Steel
Motor Service Factor
1.15
Footnotes
1
Nameplate RPM
1,745 RPM
Motor Mounting Type
C-Face
Drain Plugs
(1) Each End
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Inverter Rated
Inverter Rated
Nominal Efficiency
82.5 %
Hz
60/50 Hz
Duty
Continuous
Motor Shaft Design
Keyed
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Includes
(2) Stainless Steel T-Drain Plugs, Protective Shaft Sleeve, Shaft Key
NEMA Design
B
Duty Cycle
Continuous
Endshield Material
Stainless Steel
Series
Series 200
Bearing Protection
Shaft Slingers
Usable @ 208V
Usable at 208V
Weight
32 lb
No. of Speeds
1
Conduit Box Location
Exterior
RPM @ 50Hz
1,450 RPM
Full Load Amps @ 50Hz
1.8/0.90 A
Voltage @ 50Hz
190/380V AC
Finish
Unfinished
Usable @ 200V
Not Usable at 200V
Service Factor @ 50Hz
1.15
HP @ 50Hz
1/2 hp
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.3-2.2/1.1 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
