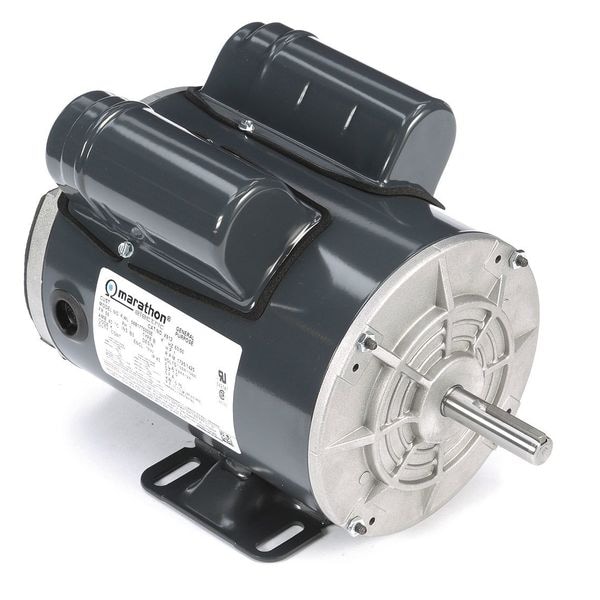

Capacitor-Start/Run Belt Drive Motor, 1 HP, 56 Frame, 115/230V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 056B17T5303
  • Zoro # G5826432
product price:
$
394.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Totally Enclosed Nonventilated
HP
1
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056B17T5303
Zoro #
G5826432
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
11 7/16 in
Length Less Shaft
9 1/8 in
Shaft Length
2 5/16 in
Body Dia.
6 1/8 in
Body Diameter
6.1 in
Frame Size
56
Shaft Diameter
5/8 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Totally Enclosed Nonventilated
HP
1
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC, 230V AC
Frame
56
Motor Mounting Type
Rigid Base
Motor Thermal Protection
Auto
Motor Service Factor
1
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Standards
CSA (LR2025), UL (E6312)
Frame Material
Steel
Ins. Class
B
Motor Bearings
Ball
Max. Ambient Temp.
104 Degrees F
Hz
50/60 Hz
Motor Mounting Position
Horizontal
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Steel
Nominal Efficiency
81.1 %
Full Load Amps
9.2/4.6 A
Duty
Continuous
Motor Shaft Design
Keyed
Usable @ 200V
No
Usable @ 208V
No
Duty Cycle
Continuous
Weight
32 lb
Product Type
Fan and Blower Motor
Bearing Type
Ball
Application
Fan/Blower
Frequency
60/50 Hz
Insulation Class
B
Full Load Current @ 60 Hz
9.2/4.6 A
Mounting Position
Horizontal
Number of Speeds
1
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Belt Drive
Nameplate Service Factor @ 60 Hz
1
Nameplate Voltage @ 50 Hz
110/220V AC
Motor Enclosure Type
Totally Enclosed Non-Ventilated

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 9.2/4.6 A Full Load Amps, 56 Frame, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Rigid Base
