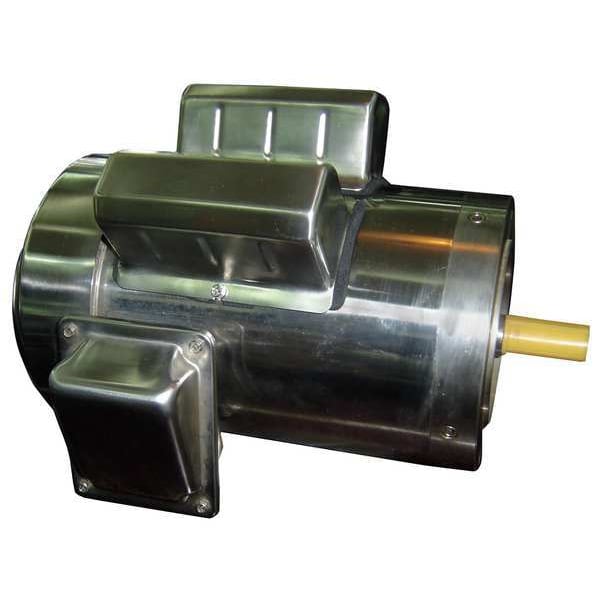

Washdown Mtr, Cap Strt, TEFC, 1 HP, 1745 rpm
Mfr # 11G245
Zoro # G3904031
product price: $786.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start/Run
Phase
Single
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
11G245
Zoro #
G3904031
UPC #
190735110799
Country of Origin
China
Dimensions
Shaft Dia.
5/8 in
Length Less Shaft
11 3/4 in
Body Dia.
6.5 in
Overall Length
13 5/8 in
Shaft Length
1 7/8 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr
Description
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.2/5.8-5.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
