  11. Wshdwn Motor, TEFC, 1/2 HP, 1750rpm, 90VDC
Shop All DC Washdown Motors
Dayton

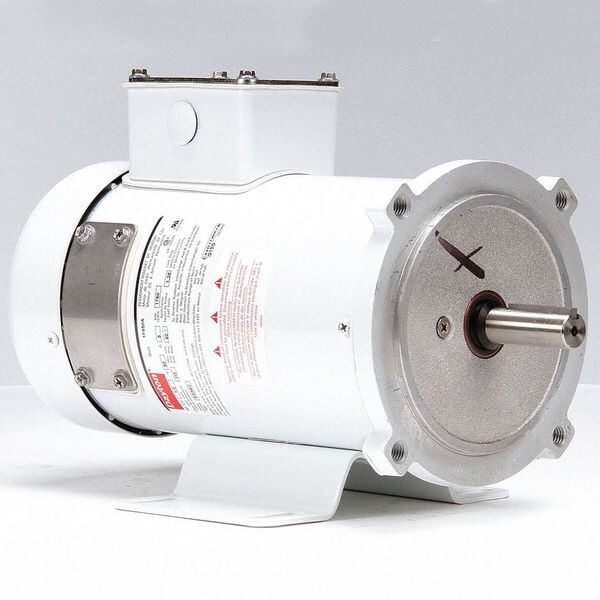

Wshdwn Motor, TEFC, 1/2 HP, 1750rpm, 90VDC

original price: $844.42
4% off
new price: $805.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Permanent Magnet DC
  • RPM Range 1,701-1,800
  • Voltage 90V DC
  • Frame 56C
  • Motor Thermal Protection None
See all product information

Product Information

Dimensions

Length Less Shaft 9 7/8 in
Shaft Length 1 7/8 in
Overall Length 13 in
Shaft Dia. 5/8 in

Details

Item Washdown Motor
Motor Design Permanent Magnet DC
HP 1/2
RPM Range 1,701-1,800
Voltage 90V DC
Frame 56C
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Fan-Cooled
Standards UL Recognized (E47479)
Ins. Class H
RPM Group 1701-1800
Nameplate RPM 1,750
Motor Mounting Type Face/Base
Bearings Ball
Full Load Torque 18.3 in-lb
Full Load Amps 5 A
Features Removable Base
Rotation CW/CCW
Voltage Compatibility 90V DC
Motor Application Washdown
Max. Ambient Temp. 40 Degrees C
Motor Bearings Ball
Motor Shaft Rotation CCW, CW
NEMA Design H
No. of Speeds 1
Motor Sub Application Aeration Fan
Removable Base Yes
Usable @ 200V No
Usable @ 208V No

Description

Washdown Motor, Motor Design Permanent Magnet DC, 1/2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 90V DC, Full Load Amps 5 A, 56C Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, NEMA Design H, Removable Base Yes, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base

Restrictions

  • Hazardous material
