Shop All Straight Line Clamps
De-Sta-Co

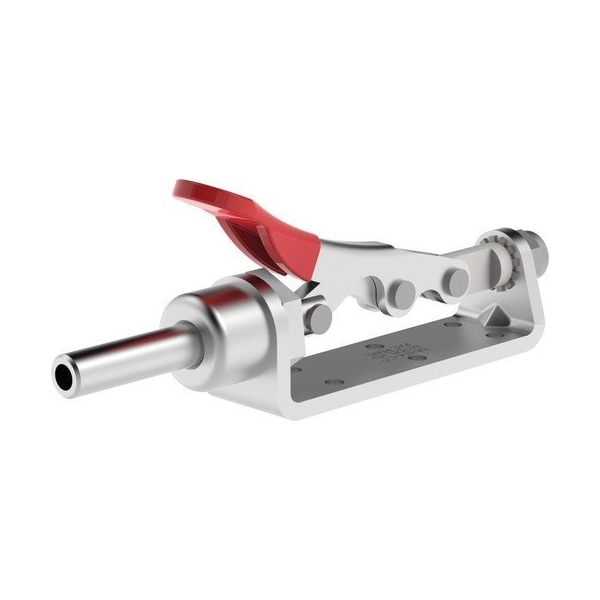

606 De-Sta-Co Clamp

product price: $56.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Application Metalworking, Welding, Assembly And Light Machining Fixture
  • Features Narrow Base for Tight Space
  • Material - Machining Steel
  • Overall Length 6.72 in
  • Overall Width 1.13 in
See all product information

Product Information

Dimensions

Overall Length 6.72 in
Overall Width 1.13 in
Overall Depth 2.42 in
Plunger Height 0.88 in
Tip Diameter 1/2 in
Arm Length 2.26 in
Height Under Arm 0.88 in
Fastener Thread Size 3/16 in
Spindle Thread Size 5/16-18

Details

Item Straight Line Clamp
Application Metalworking, Welding, Assembly And Light Machining Fixture
Features Narrow Base for Tight Space
Material - Machining Steel
Accommodates Workpiece Variation No
Includes Locking Handle No
Recommended Spindle Manufacturer Model Number 207203
Includes Spindle No
Mounting Holes Center to Center - Long Side 1.25 in
Plunger Thread 5/16-18
Body Material Steel
Exerted Force : Applied Force - Pushing 33:1
Plunger Shape Round
Locking Position Extended
Holding Capacity - Maximum 450 lbf
Plunger Travel1 1.57 in
Mounting Holes Center to Center - Short Side 1.13 in
Base Mounting Style Flange
Handle Orientation Horizontal
Spindle Material Steel
Reflectivity Reflective
Handle Color Red
Clamping Force 450 lb
Requires Articulation No
Tip Material Steel
Includes Mounting Nut No
Series 600 Series Straight Line

Description

Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 450 lbf, Plunger Travel 1.57 in, Plunger Height 0.88 in, Plunger Thread 5/16-18, Includes Spindle No, Application Metalworking, Welding, Assembly And Light Machining Fixture, Locking Position Extended, Accommodates Workpiece Variation No, Arm Length 2.26 in, Body Material Steel, Clamping Force 450 lb, Exerted Force : Applied Force - Pushing 33:1
