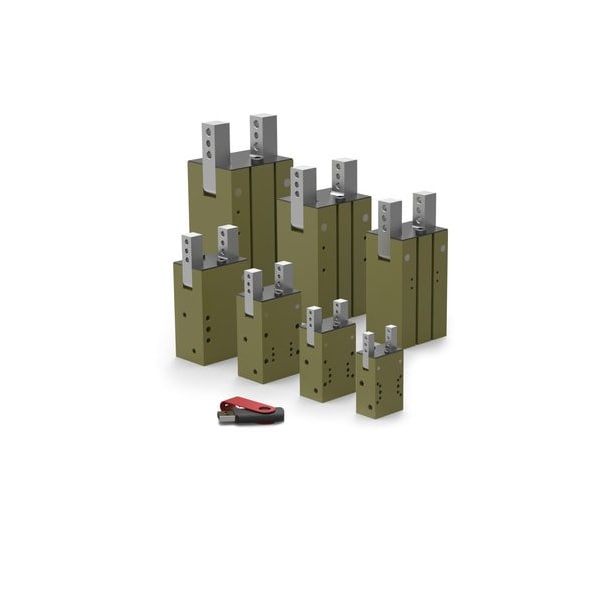

Angular Gripper, 180 Deg
Mfr # DCT-12M
Zoro # G1148561
product price:Â $1,453.99
/ea
Free Shipping & Returns
Key Features
Overall Height
64 mm
Weight
0.09 kg
Overall Length
30 mm
Overall Width
76 mm
Product Type
Angular Gripper,180 Deg
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DCT-12M
- Zoro #
- G1148561
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Height
- 64 mm
- Overall Length
- 30 mm
- Overall Width
- 76 mm
- Maximum Finger Length
- 65 mm
- Inlet Size
- M5
- Open Width
- 180 mm
- Wire Rope Length
- 30 mm
Description
Angular Gripper,180 Deg, Series DCT, Open Width 180 mm, Total Stroke 180 Degrees , Maximum Operating Pressure 7 bar, Minimum Operating Pressure 3 bar, Overall Length 30 mm, Overall Width 76 mm, Overall Height 64 mm, Maximum Operating Temperature 80 Degrees C, Stroke Adjustment Increment 90 Degrees , IP Rating IP43, Gripper Rotation 90 Degrees , Minimum Operating Temperature -35 Degrees C, Inlet Size M5, Weight 0.09 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 32 N
