De-Sta-Co

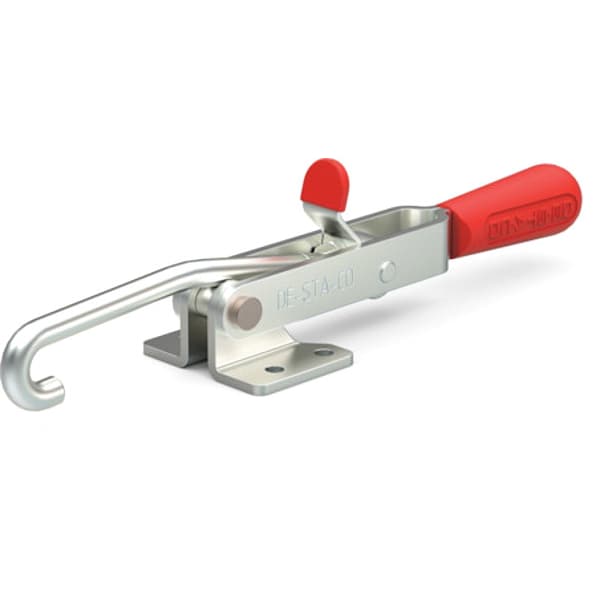

Latch Clamp, J-Hook, 375 Lbs, 1.83 In

product price: $37.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type J-Hook
  • Holding Capacity (Lb.) 450
  • Overall Height (In.) 1.83 in
  • Body Material Steel
  • Latch Centerline 0.75 in
See all product information

Product Information

Dimensions

Overall Height (In.) 1.83 in
Overall Length (In.) 8.82 in
Dia. (In.) 0.22 in
Overall Length 8.82 in
Overall Depth 1.83 in
Overall Width 1.93 in

Details

Item Latch Clamp
Type J-Hook
Holding Capacity (Lb.) 450
Body Material Steel
Latch Centerline 0.75 in
Base Mounting Centers (In.) 0.75 x 1.37
Includes Ergonomic Grip
Arm J Hook
Adjustable Range 0-0.43
Application Clamping, Latching
Mounting Holes Center to Center - Short Side 0.75 in
Requires Articulation Yes
Drawing Movement With Thumb Control 2.75 in
Includes Locking Handle No
Exerted Force : Applied Force - Pushing 21:1
Handle Orientation Horizontal
Includes Latch Plate No
Base Mounting Style Flange
Exerted Force : Applied Force - Pulling 21:1
Holding Capacity - Maximum 375 lbf
Mounting Holes Center to Center - Long Side 1.37 in
Hook Type J
Drawing Movement Without Thumb Control 4 in
Hook Adjustment - Maximum 0.49 in

Description

Latch Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 375 lbf, Hook Adjustment - Maximum 0.49 in, Drawing Movement Without Thumb Control 4 in, Includes Latch Plate No, Requires Articulation Yes, Hook Type J, Application Clamping, Latching, Body Material Steel, Drawing Movement With Thumb Control 2.75 in, Exerted Force : Applied Force - Pulling 21:1, Exerted Force : Applied Force - Pushing 21:1, Includes Ergonomic Grip
