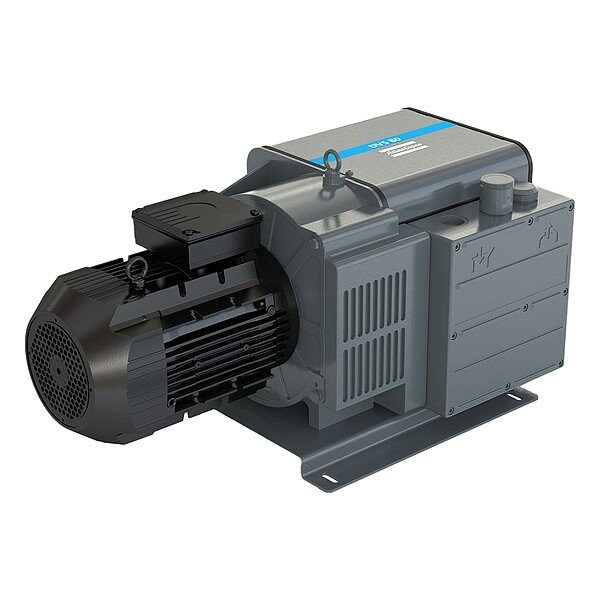

Vacuum Pump, 1.8 kW, 230/460V AC
- Mfr # DVS60 230-460V/3/60
- Zoro # G316137404
product price:Â
$
8,182.99
/ea
Additional $105.00 delivery surcharge applies per item.
Key Features
Voltage
230/460V AC
Phase
Three
Weight
145.5 lb
Overall Length
27.24 in
Maximum Flow Rate
41 cfm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DVS60 230-460V/3/60
- Zoro #
- G316137404
- UPC #
- -
- Country of Origin
- Italy
- Item
- Vacuum Pump
- Voltage
- 230/460V AC
- Phase
- Three
- Weight
- 145.5 lb
- Maximum Flow Rate
- 41 cfm
- Inlet Type
- BSPT
- Frequency
- 60 Hz
- Maximum Vacuum
- 112.5 torr
- Outlet Type
- BSPT
- Runs Dry
- Yes
- Maximum Speed
- 1,700 RPM
- Includes
- Energy Efficient LE3 Electric Motor, Exhaust Silencer, Internal Inlet Filter, Noise Containing Canopy, Non-Return Valve
- Outlet Hose/Tube ID
- 1 in
- Series
- DVS
- Self-Priming
- Yes
- Duty Cycle
- Continuous
- Pump Type
- Rotary Vane Vacuum
- Application
- CNC Clamping, Holding, Laboratory Vacuum, Lifting, Medical Systems, Moving, Packaging, Pick and Place, Pneumatic Conveying, Printing, Woodworking
- Output Power
- 1.8 kW
- Vane Material
- Graphite
- Outlet Hose/Tube OD
- 1 in
Description
Vacuum Pump, Output Power 1.8 kW, Phase Three, Voltage 230/460V AC, Maximum Flow Rate 41 cfm, Maximum Vacuum 112.5 torr, Inlet Size 1 in, Inlet Type BSPT, Outlet Size 1 in, Outlet Type BSPT, Application CNC Clamping, Holding, Laboratory Vacuum, Lifting, Medical Systems, Moving, Packaging, Pick and Place, Pneumatic Conveying, Printing, Woodworking, Maximum Discharge Pressure Not Applicable, Maximum Operating Pressure Not Applicable
