Shop DAYTON

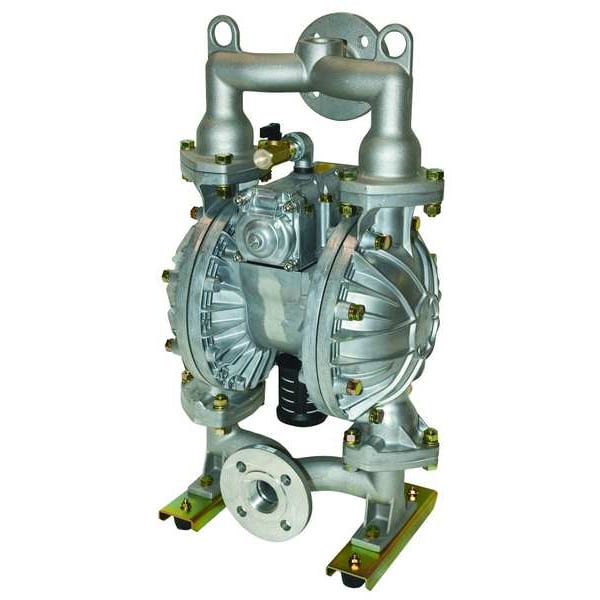

Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 115 GPM

  • Mfr # 6PY45

  • Zoro # G3440141

product price:  $1,646.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6PY45
Zoro #
G3440141
UPC #
190735370674
Country of Origin
Japan

Dimensions

Air Intake Connection Size
1/2 in
Manufacturers Warranty Length
1 yr
Overall Height
28 in
Overall Width
11.3 in
Overall Length
16.3 in
Solid Diameter (Maximum)
0.28 in
Media Intake Connection Size
1 1/2 in
Media Discharge Connection Size
1 1/2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
Air Consumption (Maximum)
100 scfm
Air Intake Connection Type
NPT Threaded Flange
Check Seat Material
Buna-N
Diaphragm Material
Buna-N
Media Temperature (Maximum)
180 Degrees F
Media Temperature (Minimum)
0 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Dry
18 ft
Self-Priming Wet
28 ft
Inlet/Outlet
1 1/2 in
Media Discharge Connection Type
NPT Threaded Flange
For Use With Potable Systems
No
Flow Rate @ 30 psi
80 gpm
Media Intake Location
Bottom
Flow Rate @ 10 psi
70 gpm
Viscosity (Maximum)
50,000 cps
Feet of Head (Maximum)
231 ft
Duty Cycle
Continuous
Media Discharge Location
Top
Flow Rate (Maximum)
115 gpm
Flow Rate @ 90 psi
110 gpm
Flow Rate @ 60 psi
100 gpm
Air Intake Pressure (Maximum)
100 psi
Mounting Hardware Material
Steel
Flow Rate @ 15 psi
76 gpm
Manifold Connection Type
NPT
Media Intake Connection Type
NPT Threaded Flange
Wetted Housing Material
Aluminum
Priming
Self-Priming
Media Discharge Port Configuration
Center Horizontal
Wetted Body Material
Aluminum
Fluid Chamber Assembly Type
Bolted
Material Conductivity
Conductive
Media Intake Port Configuration
Center Horizontal
Manifold Port Connection Type
Single Port
Diaphragm Reinforcement
Fabric Reinforced
Includes Solenoid
No Solenoid Included
Includes Clean In Place Technology
No Clean In Place Included
Center Section Material
Aluminum
Diaphragm Base Material
Buna-N
Manifold Connection Standard
NPT
Chemical Compatibility
Antifreeze, Calcium Carbonate, Detergents, Diesel, Motor Oil, Water
Displacement Per Stroke
0.365 gal
Includes
Ball Valve, Manual

Description

Double Diaphragm Pump, Air Consumption (Maximum) 100 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT Threaded Flange, Check Seat Material Buna-N, Diaphragm Material Buna-N, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 115 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type NPT Threaded Flange, Media Discharge Location Top, Media Intake Connection Size 1 1/2 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
