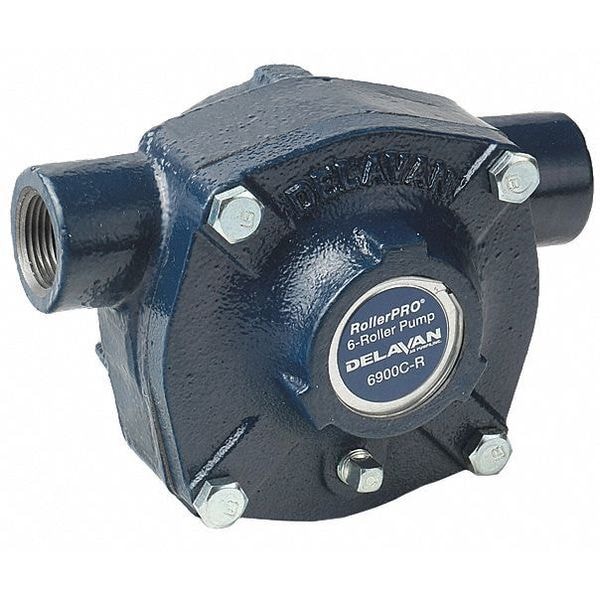

Delavan Fluid Power Spray Pump, 6-Roller, Housing Cast Iron 6900C-R - main

Spray Pump, 6-Roller, Housing Cast Iron

  • Mfr # 6900C-R

  • Zoro # G1593809

product price: $192.99
/ea
Free Shipping & Returns

Key Features

Type
6-Roller
Construction
Cast iron
RPM
540/1000
Length (In.)
5 3/8 in
GPM @ 20 PSI
9.7/19.0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6900C-R
Zoro #
G1593809
UPC #
830344002701
Country of Origin
United States

Dimensions

Length (In.)
5 3/8 in
Width (In.)
6 1/8 in
Shaft Dia. (In.)
5/8 in
Height (In.)
4 27/64 in
Intake Connection Size
3/4 in
Discharge Connection Size
3/4 in
Overall Height
4.4 in
Shaft Outer Diameter
5/8 in
Overall Length
5.4 in
Overall Width
6.1 in

Details

Item
Roller Spray Pump
Type
6-Roller
Construction
Cast iron
RPM
540/1000
GPM @ 20 PSI
9.7/19.0
GPM @ 0 PSI
10.5/19.6
Application
Agricultural Spraying, Water Transfer
GPM @ 100 PSI
3.0/11.5
GPM @ 40 PSI
8.6/18.4
Inlet/Outlet NPT (In.)
3/4 F
Design
Field Serviceable, Overmolded Rotor and Ultra Rollers to Provide Superior Performance
HP @ 0 PSI
0.08/0.20
HP @ 100 PSI
0.68/1.26
Rotation
Clockwise
Suction Lift (Ft.)
5 ft
HP @ 50 PSI
0.38/0.71
Characteristics
Field Serviceable, Ultra Rollers Do Not Swell In Water
Housing Material
Cast Iron
For Use With
Nonabrasive Wettable Powders, Water Soluble Chemicals
Includes
Permanently-Lubricated Heavy Duty Sealed Bearings, Ultra Rollers, Viton Lip Seals
Roller Material
Polypropylene, Steel
Priming
Manual
Motor Shaft Rotation
CWSE
Operating Pressure (Maximum)
150 psi
Media Temperature (Maximum)
140 Degrees F
Discharge Connection Type
NPT
Flow Rate (Maximum)
22.8 gpm
Intake Connection Type
NPT
Suction Lift (Maximum)
5 ft
Number of Rollers
6
Motor Speed (Maximum)
1,000 RPM

Description

Roller Spray Pump, Discharge Connection Size 3/4 in, Discharge Connection Type NPT, Flow Rate (Maximum) 22.8 gpm, Housing Material Cast Iron, Intake Connection Size 3/4 in, Intake Connection Type NPT, Motor Shaft Rotation CWSE, Motor Speed (Maximum) 1,000 RPM, Number of Rollers 6, Operating Pressure (Maximum) 150 psi, Priming Manual, Roller Material Polypropylene, Steel, Shaft Outer Diameter 5/8 in, Suction Lift (Maximum) 5 ft, Overall Length 5.4 in
