  9. Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene, 14 GPM
Shop All Diaphragm Pumps
Aro

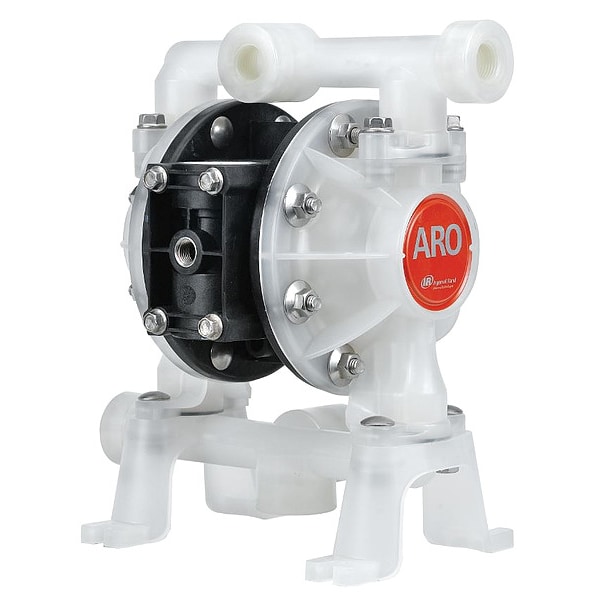

Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene, 14 GPM

product price: $805.50
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Polypropylene
  • Diaphragm Material - Pumps Santoprene(R)
  • Max. Flow 14 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 150 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1/2 in
Air Inlet Size 1/4 in FNPT
Length 13 3/4 in
Width 7 1/2 in
Max. Dia. Solids 3/32 in
Height 11 5/8 in
Manufacturers Warranty Length 5 yr
Overall Width 6.7 in
Overall Length 10 in
Overall Height 10.9 in
Solid Diameter (Maximum) 0.09 in
Media Discharge Connection Size 1/2 in
Air Intake Connection Size 1/4 in
Media Intake Connection Size 1/2 in

Details

Housing Material - Pumps Polypropylene
Diaphragm Material - Pumps Santoprene(R)
Max. Flow 14 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 150 Degrees F
Connection Style NPT
Agency Compliance CE, REACH, RoHS
Max. Temp. 150 Degrees F
Max. Flow GPM 14 gpm
Max. Operating Pressure 100 psi
Valve Type Ball
Self-Priming Wet 15 ft
Operation Type Air Operated
Body Material Polypropylene
Ball Material Santoprene(R)
Manifold Connection Multiport
Diaphragm Material Santoprene
Self-Priming Dry 10 ft
Check Seat Material Polypropylene
Item Double Diaphragm Pump
Standards ATEX Certified
Media Discharge Location Center, Side
Series PD05P
Nameplate Voltage N
Feet of Head (Maximum) 289 ft
Air Intake Pressure (Maximum) 100 psi
Flow Rate @ 80 psi 14.8 gpm
Non-Wetted Housing Material Plastic
Air Consumption (Maximum) 20 scfm
Media Temperature (Maximum) 225 Degrees F
Pump Assembly Type Bolt
NPSHr 35 ft of head
Media Intake Location Bottom, Center, Side
Media Temperature (Minimum) -40 Degrees F
Mounting Hardware Material Stainless Steel
Flow Rate @ 100 psi 15.2 gpm
Viscosity (Maximum) 15,000 cps
Media Intake Connection Type NPT
Flow Rate @ 60 psi 14 gpm
Priming Self-Priming
Flow Rate @ 40 psi 12.5 gpm
Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water
Air Intake Connection Type NPT
Manifold Connection Type NPT
Valve Material Santoprene
Flow Rate @ 50 psi 13.5 gpm
Flow Rate @ 90 psi 15 gpm
Wetted Housing Material Polypropylene
Media Discharge Connection Type NPTF
Series Family Compact
Flow Rate (Maximum) 15.2 gpm
Flow Rate @ 70 psi 14.4 gpm
For Use With Potable Systems Yes
Operating Pressure (Maximum) 100 psi

Description

Double Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 15.2 gpm, Manifold Connection Multiport, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Side, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPT
