  9. Spray Pump, 8-Roller, Housing 304 SS

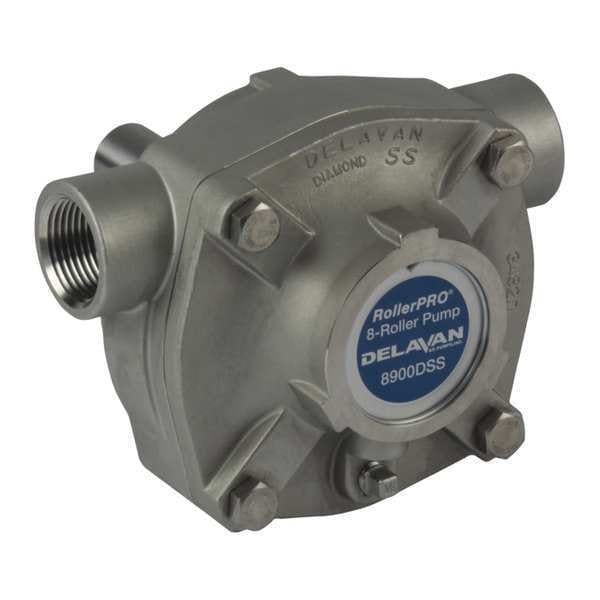

Delavan Fluid Power Spray Pump, 8-Roller, Housing 304 SS 8900DSS - main

Spray Pump, 8-Roller, Housing 304 SS

  • Mfr # 8900DSS

  • Zoro # G1593888

product price: $621.99
/ea
Free Shipping & Returns

Key Features

Type
8-Roller
Construction
Stainless Steel
Shaft Dia. (In.)
15/16 in
For Use With
Nonabrasive Wettable Powders, Water Soluble Chemicals
Length (In.)
6 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8900DSS
Zoro #
G1593888
UPC #
830344005009
Country of Origin
United States

Dimensions

Shaft Dia. (In.)
15/16 in
Length (In.)
6 3/8 in
Height (In.)
5 1/8 in
Width (In.)
6 3/8 in
Overall Width
6.4 in
Discharge Connection Size
1 in
Overall Length
6.4 in
Shaft Outer Diameter
1 in
Intake Connection Size
1 in
Overall Height
5.1 in

Details

Item
Roller Spray Pump
Type
8-Roller
Construction
Stainless Steel
For Use With
Nonabrasive Wettable Powders, Water Soluble Chemicals
Suction Lift (Ft.)
5 ft
RPM
540/1000
Design
Field Serviceable, Overmolded Rotor and Ultra Rollers to Provide Superior Performance
GPM @ 0 PSI
13.0/24.0
GPM @ 40 PSI
11.6/22.4
Housing Material
304 Stainless Steel
GPM @ 100 PSI
10.6/21.8
Inlet/Outlet NPT (In.)
1 F
HP @ 0 PSI
0.33/1.56
Characteristics
Field Serviceable, Ultra Rollers Do Not Swell In Water
GPM @ 20 PSI
12.4/23.2
HP @ 100 PSI
1.25/2.53
Application
Agricultural Spraying, Water Transfer
Rotation
Counterclockwise
HP @ 50 PSI
0.74/1.78
Includes
Permanently-Lubricated Heavy Duty Sealed Bearings, Ultra Rollers, Viton Lip Seals
Roller Material
Polypropylene, Steel
Flow Rate (Maximum)
24 gpm
Suction Lift (Maximum)
5 ft
Operating Pressure (Maximum)
300 psi
Priming
Manual
Motor Speed (Maximum)
1,000 RPM
Number of Rollers
8
Media Temperature (Maximum)
140 Degrees F
Motor Shaft Rotation
CCWSE
Discharge Connection Type
NPT
Intake Connection Type
NPT

Description

Roller Spray Pump, Discharge Connection Size 1 in, Discharge Connection Type NPT, Flow Rate (Maximum) 24 gpm, Housing Material 304 Stainless Steel, Intake Connection Size 1 in, Intake Connection Type NPT, Motor Shaft Rotation CCWSE, Motor Speed (Maximum) 1,000 RPM, Number of Rollers 8, Operating Pressure (Maximum) 300 psi, Priming Manual, Roller Material Polypropylene, Steel, Shaft Outer Diameter 1 in, Suction Lift (Maximum) 5 ft, Overall Length 6.4 in
