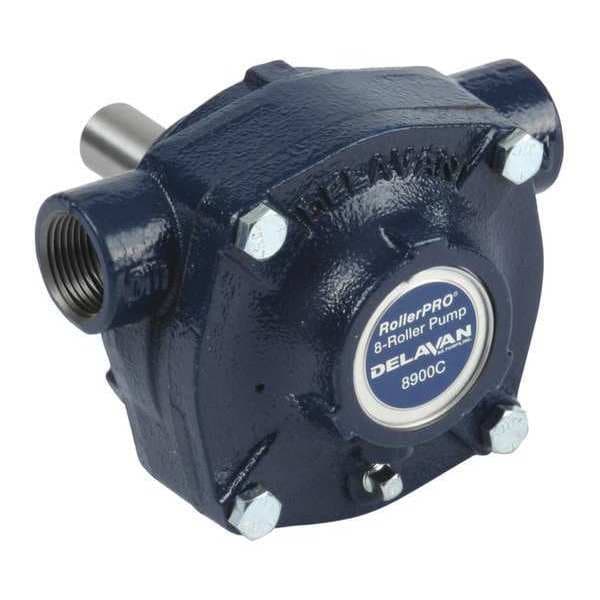

Spray Pump, 8-Roller, Housing Cast Iron

  • Mfr # 8900C
  • Zoro # G1593967
product price:
$
221.99
/ea
Free Shipping & Returns

Key Features

Type
8-Roller
Construction
Cast iron
Characteristics
Field Serviceable, Ultra Rollers Do Not Swell In Water
GPM @ 20 PSI
12.4/23.2
GPM @ 100 PSI
10.6/21.8
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8900C
Zoro #
G1593967
UPC #
830344004002
Country of Origin
United States
Item
Roller Spray Pump
Type
8-Roller
Construction
Cast iron
Characteristics
Field Serviceable, Ultra Rollers Do Not Swell In Water
GPM @ 20 PSI
12.4/23.2
GPM @ 100 PSI
10.6/21.8
GPM @ 40 PSI
11.6/22.4
Housing Material
Cast Iron
HP @ 0 PSI
0.33/1.56 hp
HP @ 50 PSI
0.74/1.78 hp
GPM @ 0 PSI
13.0/24.0
For Use With
Nonabrasive Wettable Powders, Water Soluble Chemicals
Includes
Permanently-Lubricated Heavy Duty Sealed Bearings, Ultra Rollers
RPM
540/1000
Application
Agricultural Spraying, Water Transfer
HP @ 100 PSI
1.25/2.53 hp
Rotation
Counterclockwise
Inlet/Outlet NPT (In.)
1 F
Suction Lift (Ft.)
5 ft
Design
Field Serviceable, Overmolded Rotor and Ultra Rollers to Provide Superior Performance
Roller Material
Polypropylene/Steel
Motor Shaft Rotation
CCWSE
Media Temperature (Maximum)
140 Degrees F
Flow Rate (Maximum)
24 gpm
Discharge Connection Type
NPT
Priming
Manual
Intake Connection Type
NPT
Operating Pressure (Maximum)
300 psi
Suction Lift (Maximum)
5 ft
Motor Speed (Maximum)
1,000 RPM
Number of Rollers
8
Duty Cycle
Continuous
Media Temperature - Maximum
140 Degrees F
Pump Shaft Rotation Direction
CCW
Shaft Seal Material
FKM

Description

Roller Spray Pump, Discharge Connection Size 1 in, Discharge Connection Type NPT, Flow Rate (Maximum) 24 gpm, Housing Material Cast Iron, Intake Connection Size 1 in, Intake Connection Type NPT, Motor Shaft Rotation CCWSE, Motor Speed (Maximum) 1,000 RPM, Number of Rollers 8, Operating Pressure (Maximum) 300 psi, Priming Manual, Roller Material Polypropylene/Steel, Shaft Outer Diameter 1 in, Suction Lift (Maximum) 5 ft, Duty Cycle Continuous, Overall Length 6.4 in
