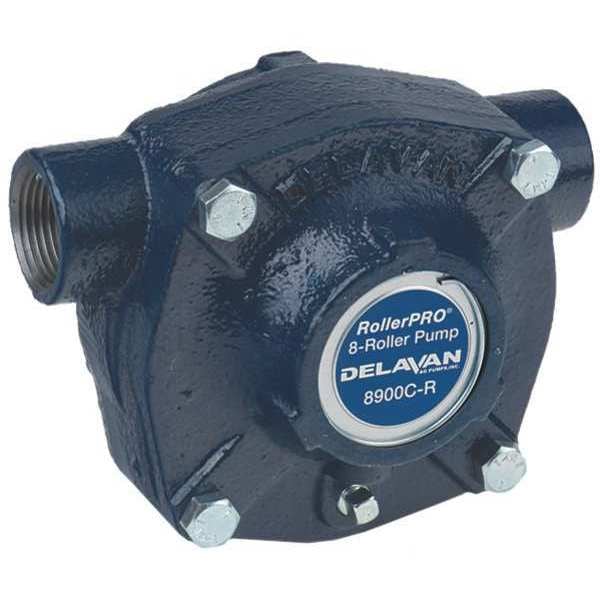

Delavan Fluid Power Spray Pump, 8-Roller, Housing Cast Iron 8900C-R - main

Spray Pump, 8-Roller, Housing Cast Iron

  • Mfr # 8900C-R

  • Zoro # G1593860

product price: $258.99
/ea
Free Shipping & Returns

Key Features

Type
8-Roller
Construction
Cast iron
For Use With
Nonabrasive Wettable Powders, Water Soluble Chemicals
RPM
540/1000
HP @ 100 PSI
1.25/2.53
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8900C-R
Zoro #
G1593860
UPC #
830344004705
Country of Origin
United States

Dimensions

Shaft Dia. (In.)
15/16 in
Width (In.)
6 3/8 in
Height (In.)
5 1/8 in
Length (In.)
6 3/8 in
Discharge Connection Size
1 in
Overall Height
5.1 in
Overall Length
6.4 in
Overall Width
6.4 in
Shaft Outer Diameter
1 in
Intake Connection Size
1 in

Details

Item
Roller Spray Pump
Type
8-Roller
Construction
Cast iron
For Use With
Nonabrasive Wettable Powders, Water Soluble Chemicals
RPM
540/1000
HP @ 100 PSI
1.25/2.53
GPM @ 0 PSI
13.0/24.0
Housing Material
Cast Iron
Design
Field Serviceable, Overmolded Rotor and Ultra Rollers to Provide Superior Performance
Application
Agricultural Spraying, Water Transfer
GPM @ 20 PSI
12.4/23.2
HP @ 50 PSI
0.74/1.78
Includes
Permanently-Lubricated Heavy Duty Sealed Bearings, Ultra Rollers, Viton Lip Seals
GPM @ 100 PSI
10.6/21.8
Rotation
Clockwise
Inlet/Outlet NPT (In.)
1 F
Suction Lift (Ft.)
5 ft
GPM @ 40 PSI
11.6/22.4
Characteristics
Field Serviceable, Ultra Rollers Do Not Swell In Water
HP @ 0 PSI
0.33/1.56
Roller Material
Polypropylene, Steel
Flow Rate (Maximum)
24 gpm
Suction Lift (Maximum)
5 ft
Discharge Connection Type
NPT
Priming
Manual
Media Temperature (Maximum)
140 Degrees F
Number of Rollers
8
Intake Connection Type
NPT
Motor Shaft Rotation
CWSE
Operating Pressure (Maximum)
300 psi
Motor Speed (Maximum)
1,000 RPM

Description

Roller Spray Pump, Discharge Connection Size 1 in, Discharge Connection Type NPT, Flow Rate (Maximum) 24 gpm, Housing Material Cast Iron, Intake Connection Size 1 in, Intake Connection Type NPT, Motor Shaft Rotation CWSE, Motor Speed (Maximum) 1,000 RPM, Number of Rollers 8, Operating Pressure (Maximum) 300 psi, Priming Manual, Roller Material Polypropylene, Steel, Shaft Outer Diameter 1 in, Suction Lift (Maximum) 5 ft, Overall Length 6.4 in
