Shop DELAVAN FLUID POWER

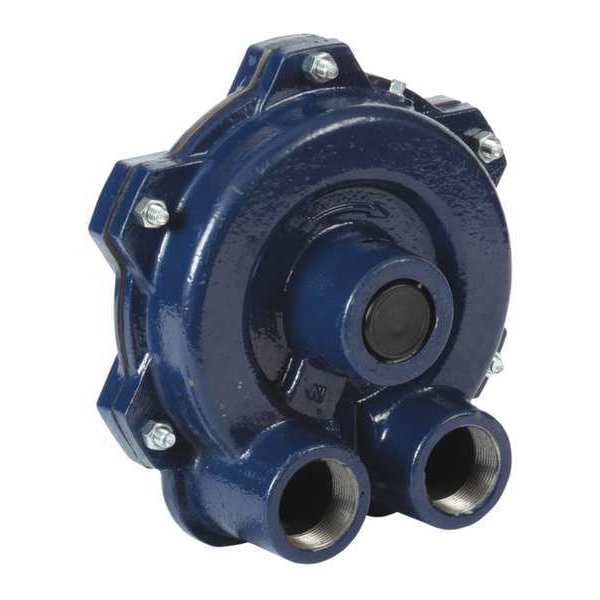

Spray Pump, Impeller, Housing Cast Iron

  • Mfr # 26556-4

  • Zoro # G1593903

product price:  $392.42
/ea
Free Shipping & Returns

Key Features

Type
Impeller
Construction
Cast iron
HP @ 50 PSI
4.90/6.60
Application
Agricultural Spraying, Water Transfer
GPM @ 10 PSI
65.0/80.0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
26556-4
Zoro #
G1593903
UPC #
830344001001
Country of Origin
United States

Dimensions

Length (In.)
6 3/4 in
Shaft Dia. (In.)
15/16 in
Width (In.)
10 in
Height (In.)
10 1/2 in
Overall Height
10.5 in
Overall Width
10 in
Overall Depth
6.75 in
Inlet Diameter
1 1/2 in
Solid Diameter (Maximum)
0.125 in
Discharge Diameter
1 1/2 in

Details

Item
Turbine Pump
Type
Impeller
Construction
Cast iron
HP @ 50 PSI
4.90/6.60
Application
Agricultural Spraying, Water Transfer
GPM @ 10 PSI
65.0/80.0
GPM @ 30 PSI
46.0/65.0
GPM @ 50 PSI
30.0/49.0
Rotation
Counterclockwise
GPM @ 100 PSI
0.0/20.0
Inlet/Outlet NPT (In.)
1-1/2 F
Suction Lift (Ft.)
5 ft
For Use With
Nonabrasive Wettable Powders, Water Soluble Chemicals
Includes
Nylon Impeller, Stainless Steel Shaft, Viton Lip Seal
GPM @ 20 PSI
55.0/73.0
Housing Material
Cast Iron
RPM
1000/1200
GPM @ 40 PSI
37.0/57.0
Characteristics
15/16 in Stainless Steel Solid Shaft, High Flow Pump for Quick Water Transfer
Design
High Performance Turbine Impeller Delivers up to 90 gpm
HP @ 0 PSI
2.20/3.00
GPM @ 0 PSI
75.0/90.0
Feet of Head (Maximum)
0 ft
Flow Rate @ 10 psi
30 gpm
Media Temperature - Maximum
120 Degrees F
Pumping Application
Spraying
Best Efficiency Flow
45 gpm
Shaft Seal Material
FKM
Pump Housing Material
Cast Iron
Number of Stages
1
NPSHr
0 ft
Shut Off Pressure - Maximum
100 psi
Shaft Seal Type
Lip
Pump Design
Regenerative Turbine
Media Temperature - Minimum
0 Degrees F
Chemical Compatibility
Herbicide
Best Efficiency Head
0 ft
Flow Rate @ 30 psi
8 gpm
Power Source
PTO Powered
Flow Rate (Maximum)
90 gpm
Operation
Manual
Ambient Temperature - Maximum
120 Degrees F
Priming
Manual
Impeller Material
Nylon
Flow Rate @ 20 psi
19 gpm
Ambient Temperature - Minimum
32 Degrees F
Power Source - TS Only
PTO Powered

Description

Turbine Pump, Phase Not Applicable, Pump Housing Material Cast Iron, Nameplate Voltage Not Applicable, Flow Rate @ 10 psi 30 gpm, Flow Rate @ 20 psi 19 gpm, Flow Rate @ 30 psi 8 gpm, Best Efficiency Head 0 ft, Discharge Rotation Not Applicable
