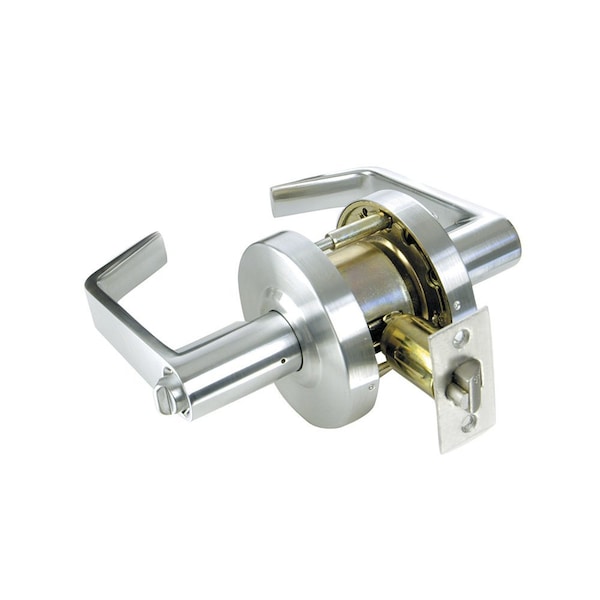

Door Lever Lockset, 1 3/8-1 3/4" Thick

Name: Door Lever Lockset, 1 3/8-1 3/4" Thick
Brand: Design Hardware
SKU: G809481342
Price: 94.19 USD
Availability: InStock

94.19

/ea

Keyway Type

None

Strike Plate Height

4 7/8 in

Lockset Handle Type

Lever

ANSI Grade

Door Thickness - Minimum

1 3/8 in

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: DH-V-76-F-26D
Zoro #: G809481342
UPC #: -
Country of Origin: China
Keyway Type: None
Lockset Handle Type: Lever
ANSI Grade: 2
Item: Door Lever Lockset
Locking/Unlocking Access - Outside: Not Lockable
Locking/Unlocking Access - Inside: Push Button
Mortise/Cylindrical: Cylindrical
ANSI/BHMA Finish: Satin Chromium-Plated
Backset: 2 3/4 in
Trim Plate Shape: Round
Lockset Style: Rose
Lockset Function ANSI Code: F76
Lockset Function: Privacy, Bedroom
Strike Type: ASA
Lockset Type: Mechanical
Includes Hardware: Hardware Included
Includes: Combination Screws for Wood or Metal Doors and Frames
ADA Compliant: Yes
Latch Bolt/Dead Bolt: Dead Latch
Hand Orientation: Non-Handed
Standards: ANSI A156.2, UL Listed
Visual Indicator Message: No Message
Ligature-Resistant: Not Ligature-Resistant
Features: Anti-Sag Mechanism with Independent Lever Return Springs to Prevent Lever Sag, Clutching Levers Standard for Vandal Resistance on Locking Functions

Strike Plate Height: 4 7/8 in
Door Thickness - Minimum: 1 3/8 in
Strike Plate Width: 1 1/4 in
Fits Chest Size: Anti-Sag Mechanism with Independent Lever Return Springs to Prevent Lever Sag, Clutching Levers Standard for Vandal Resistance on Locking Functions
Strike Plate Lip Length: 1 1/4 in
Door Thickness - Maximum: 1 3/4 in
