  11. Power-Stud+ SD1 Wedge Anchor, 3/4" Dia., 5-1/2" L, Carbon Steel Zinc Plated, 20 PK
Shop All Wedge Anchors
Dewalt

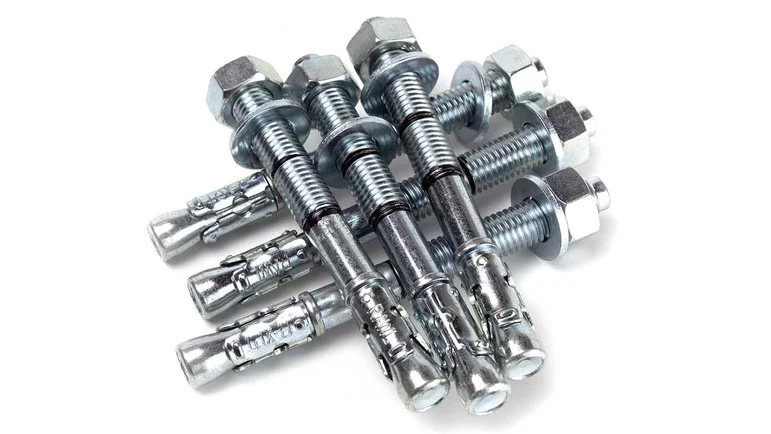

Power-Stud+ SD1 Wedge Anchor, 3/4" Dia., 5-1/2" L, Carbon Steel Zinc Plated, 20 PK

product price: $34.85
/pk 20, $1.74/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Compatible Material Concrete
  • Sub-Brand Power-Stud+ SD1
  • Material Carbon Steel
  • Finish Zinc Plated
See all product information

Product Information

Dimensions

Anchor Diameter 3/4"
Overall Length 5-1/2"
Drill Bit Size 3/4 in
Thread Size 3/4"-10
Minimum Installation Depth 3-3/8"
Thread Length 3 in
Nut Width 1.125 in
Washer Outside Diameter 1.4688 in

Details

Promotion Restriction Not eligible for promotion
Item Wedge Anchor
Compatible Material Concrete
Sub-Brand Power-Stud+ SD1
Material Carbon Steel
Finish Zinc Plated
Seismic Approved Yes
ICC Approved for Cracked Concrete Yes
Ultimate Pullout (Lb.) 7,860 lb
Maximum Material Thickness 1-3/8"
ICC Approved for Un-Cracked Concrete Yes
Embedment In Concrete 3 3/8 in
Ultimate Shear in 3000 PSI Concrete (Lb.) 12,685 lb
Includes Nut, Washer
Ultimate Tension in 3000 PSI Concrete (Lb.) 7,860 lb
Ultimate Tension (Lbs.) 7,860 lb
Ultimate Shear (Lb.) 12,685 lb
Material Grade Medium Carbon
Industry Standards American Concrete Institute 355.2, ICC-ES Acceptance Criteria AC-193, ICC-ES ESR-2818 Category 1 Cracked and Uncracked Concrete, ICC-ES ESR-2966 Concrete Masonry Units (CMU)
Wedge Anchor Type Wedge Anchor
Series Power-Stud+ SD1
Minimum Material Thickness 6 in
Minimum Installation Torque 80 ft-lb
Thread Style Fully Threaded
System of Measurement Inch
Manufacturer Location Globally Sourced
Thread Type Coarse
Material Quality Standards ASTM E-488
Maximum Installation Torque 80 ft-lb
Material Grade/Class Medium Carbon

Description

Wedge Anchor, System of Measurement Inch, Anchor Diameter 3/4 in, Thread Size 3/4 In.-10, Overall Length 5 1/2 in, Thread Length 3 in, Material Steel, Material Grade/Class Medium Carbon, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 3/4 in, Minimum Installation Depth 3 3/8 in, Minimum Material Thickness 6 in, Nut Width 1.125 in, Washer Outside Diameter 1.4688 in, Wedge Anchor Type Wedge Anchor, Seismic Approved Yes, ICC Approved for Cracked Concrete Yes
